You will get a best-optimized multilayer PCB Designed on EAGLE
You will get a best-optimized multilayer PCB Designed on EAGLE
Project details

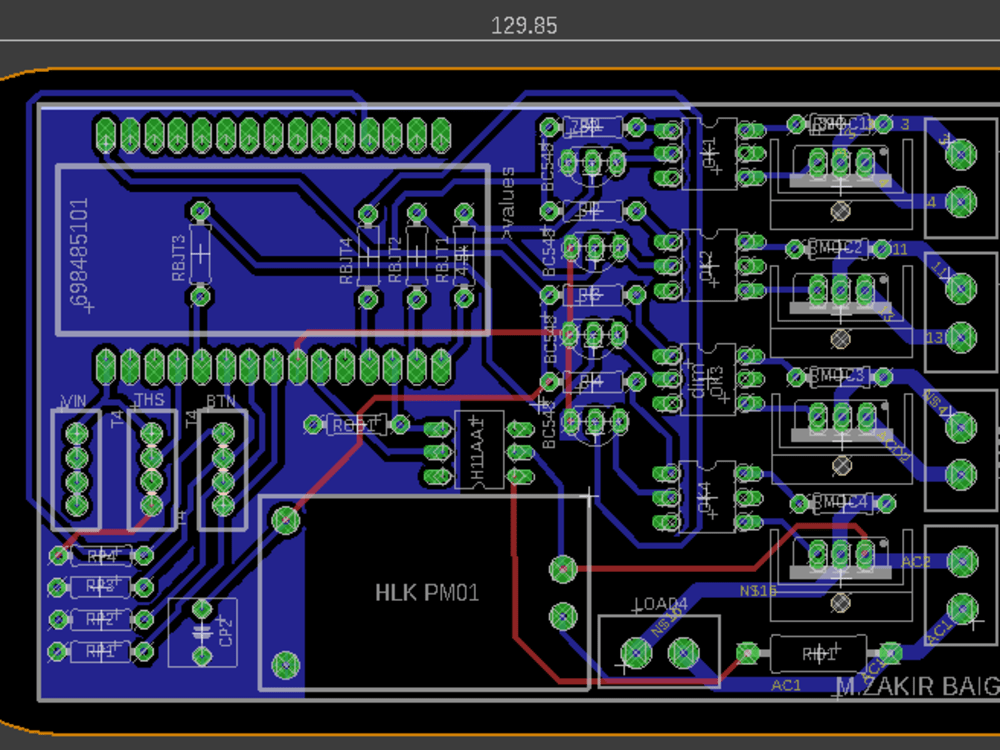

I will make a Circuit for your product that requires your desired output such as a Switchboard for Home Automation, UPS for your router, etc. After designing the circuit keeping in view all of the safety and optimization requirements, I will make a schematic for it on EAGLE software. Then for finishing I will make a PCB Designing file of .brd extension and create a Gerber file for my client who can order it from any PCB manufacturers such a JLCPCB, PCBWay, etc. The design will be multilayer depending upon the requirements of my client and also optimized. I have 4 years of experience creating PCB files on Eagle and will assure my quality work. I urge the client to give me complete info before ordering. Thanks for reading! Waiting for your offer.
Project Type
Packaging Design, Print Design, Product DesignWhat's included
| Service Tiers |
Starter
$20
|
Standard
$50
|
Advanced
$100
|
|---|---|---|---|
| Delivery Time | 1 day | 2 days | 4 days |
Number of Revisions | 5 | 5 | 5 |
Source Files |
About Muhammad Zakir
Electrical Engineer
Islamabad, Pakistan - 10:22 am local time
Steps for completing your project
After purchasing the project, send requirements so Muhammad Zakir can start the project.
Delivery time starts when Muhammad Zakir receives requirements from you.
Muhammad Zakir works on your project following the steps below.
Revisions may occur after the delivery date.
Requirements
What type of circuit do you need? What will be its response to a given input? Do you have your own designed schematic circuit whose PCB is to be created OR you have to make it from scratch?
Layers and components used
How many layers do you need in your PCB and are the components used in it are Surface Mount or Through Hole Components?
