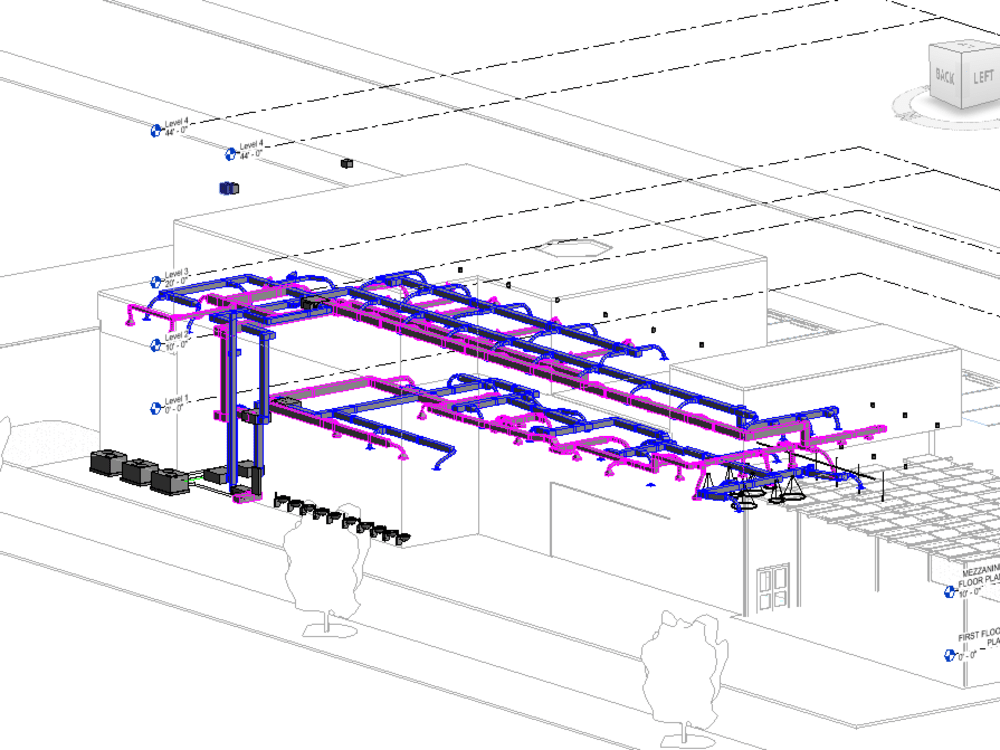

You will get a detailed HVAC layout in Revit & AutoCAD.
You will get a detailed HVAC layout in Revit & AutoCAD.
Project details
You will get detailed HVAC layout will include:
1.Supply & Return Diffuser System.
2.VRF System.
3.Split Type.
4.Air Handling Units (AHU)
5.Condensor Units.
6.Variable Air Volume.
7.Outdoor Air Intake.
8.Colour Legends Scheme in Revit for ZObes and Spaces.
9.Reports in Revit.
10.Gereal Notes.
11.BOQ.
1.Supply & Return Diffuser System.
2.VRF System.
3.Split Type.
4.Air Handling Units (AHU)
5.Condensor Units.
6.Variable Air Volume.
7.Outdoor Air Intake.
8.Colour Legends Scheme in Revit for ZObes and Spaces.
9.Reports in Revit.
10.Gereal Notes.
11.BOQ.
Field of Expertise
Mechanical, Electrical, & PlumbingBuilding Type
CommercialBIM Software
Autodesk Revit, Autodesk AutoCADFile Format
RVT, DWG, IFCWhat's included
| Service Tiers |
Starter
$200
|
Standard
$300
|
Advanced
$500
|
|---|---|---|---|
| Delivery Time | 2 days | 3 days | 4 days |
Number of Revisions | 1 | 2 | 2 |
Frequently asked questions
About Raheel
Professional Electrical Engineer
Islamabad, Pakistan - 7:31 am local time
developing and designing new electrical systems and testing
equipment. Diligent and analytical professional certified in Electrical
Systems and proficient in AC/DC motor drives, high voltage cabling
and preliminary electrical design. Comfortable handling multiple
projects simultaneously with little to no supervision.
Steps for completing your project
After purchasing the project, send requirements so Raheel can start the project.
Delivery time starts when Raheel receives requirements from you.
Raheel works on your project following the steps below.
Revisions may occur after the delivery date.
Project will Have the following steps:
1.Getting Client Requirements. 2.Creating Plan. 3.Drafting. 4.Editing. 5.Checking for Disconnects. 6.Creating Reports. 7.Creating Legends & Sheets. 8.Delever final draft
