You will get Get all the 2d drawing with 3d elevation for 200 sq.yrds house.
You will get Get all the 2d drawing with 3d elevation for 200 sq.yrds house.
Project details

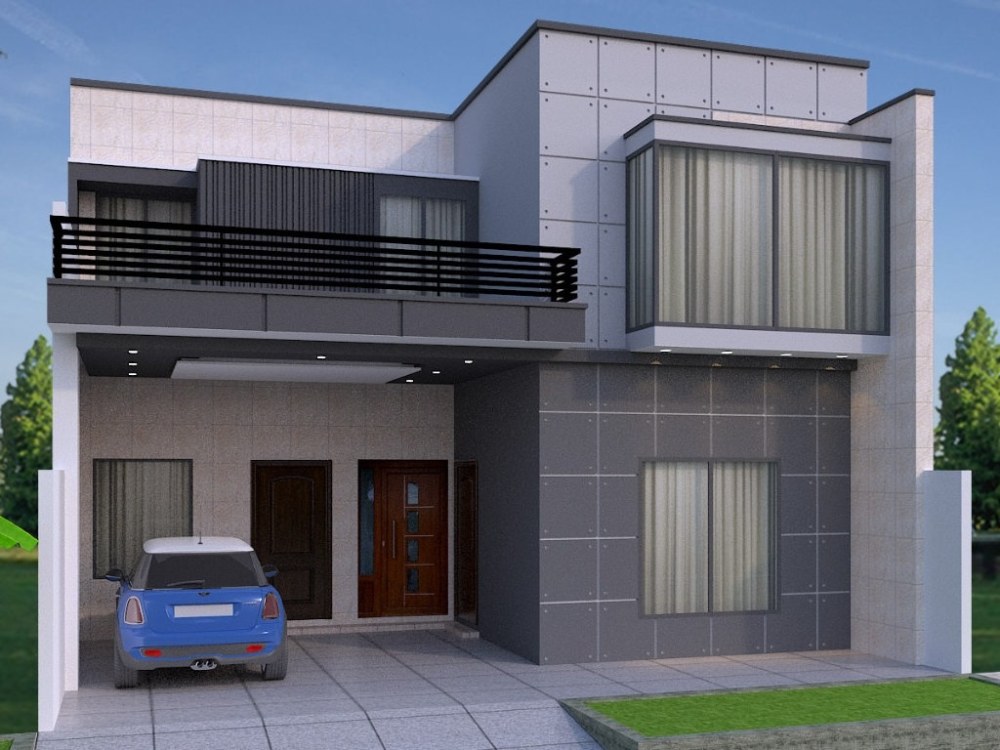

You will get complete dawings for 200 sq.yrds house which includes architectural, structural, Mep dwgs wit 3d front elelavtion.It is 4 BHK house with extra room on rooftop.This house is intelligently designed.The two floors are can be seperated as it has an extra entrace for the first floor.It has big car porch.The elevation is simple but elegant.Natural light and ventilation is the key consideration in this design.it has 3200 sq.ft covered area.
Project Scale
BuildingBuilding Type
ResidentialFile Format
3DS, DWG, JPGWhat's included
| Service Tiers |
Starter
$100
|
Standard
$250
|
Advanced
$300
|
|---|---|---|---|
| Delivery Time | 7 days | 7 days | 7 days |
Number of Revisions | 2 | 2 | 2 |
Number of 2D Drawings | 3 | 15 | 35 |
High Level of Details | - | - | |
Graphic Enhancements | - | - | |
Source Files | - | ||
Layout Sheets |
Optional add-ons
You can add these on the next page.
Additional Revision
+$50
Additional 2D Drawing
(+ 1 Day)
+$50
High Level of Details
(+ 1 Day)
+$50
Graphic Enhancements
(+ 2 Days)
+$100
Source File
(+ 1 Day)
+$50About Abedullah
Architect
Islamabad, Pakistan - 9:43 pm local time
I have been extensively involved in site supervision team on major projects involving educational facilities, residential towers,etc..Experience also includes acceptance, approval and inspection procedures, evaluation of tender documentation, supervision, co-ordination, maintenance, review of drawings and specifications, checking of material, QC/QA, interim certificates of payments, etc.
My experience is in site management includes review of as-built drawings, re-measured quantities, organization of weekly, monthly, quarterly progress meetings, coordination with client etc..
I adheres to a team concept as an integral, enthusiastic, influence on the process in accordance with all departmental policies and procedures ensure a seamless transition of completed projects into Revenue Service. Also have effective oral and written communication skills, understand the scope of work, eager to learn, willing to perform a variety of tasks and be a team player
Steps for completing your project
After purchasing the project, send requirements so Abedullah can start the project.
Delivery time starts when Abedullah receives requirements from you.
Abedullah works on your project following the steps below.
Revisions may occur after the delivery date.
Client Review
Client will review the project Thoroughly, if he needs changes/modification upto 10% or less, it will be free of cost other than that will be charged as extra .
