You will get a Real-Time implementation of a Digital Notch Filter
Rising Talent
You will get a Real-Time implementation of a Digital Notch Filter
Rising Talent
Project details
The aim of the project is to implement a Real-Time Digital Notch Filter with an Input signal frequency between 50 and 5000 Hz
Project Type
DevelopmentWhat's included $500
These options are included with the project scope.
$500
- Delivery Time 10 days
- Number of Revisions 1
About Cristian Gustavo
Electronic Engineer
Cordoba, Argentina - 4:39 am local time
Or do you have code for Arduino, ESP32, or Microchip that you want to measure or fix?
Okay !!!!!! Send me the schematic or code — I can build it on an experiment board, measure it with a digital oscilloscope, analyze it, and modify it for you, always sharing my camera on UPWORK
All of this is included for the modest price of USD 35 per hour. Don't worry if additional components are needed; I can purchase them if you transfer the amount to me in advance.
Steps for completing your project
After purchasing the project, send requirements so Cristian Gustavo can start the project.
Delivery time starts when Cristian Gustavo receives requirements from you.
Cristian Gustavo works on your project following the steps below.
Revisions may occur after the delivery date.
Analog Circuit Discretization

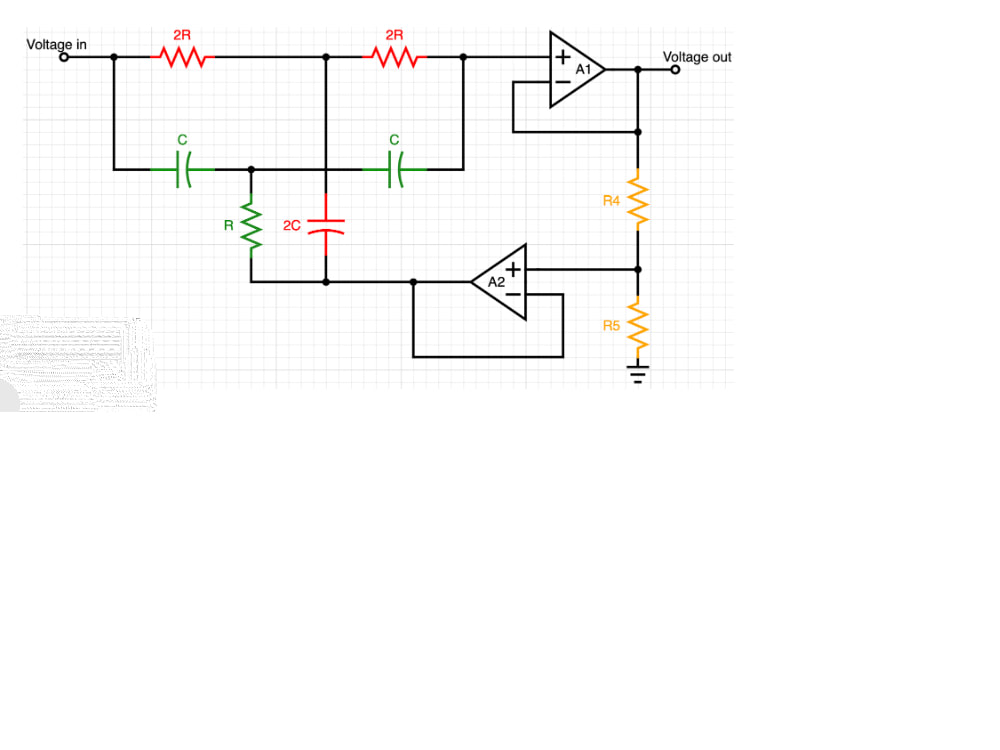

The analog circuit attached will be first discretized in the selected frequency and bandwidth, and the result will be a Discrete State-Space model compound by 4 matrixes A B C, and D
Note
I will not provide you with the methods employed to obtain this Discrete State-Space model (4 Matrixes), but is widely known, and you can consult it on your own. These 4 matrixes will have 32 bits of Fixed-Point values signed (Fractional Q31 format)
