You will get 2D technical drawings - AutoCAD, SolidWorks & CATIA
Top Rated
Project details

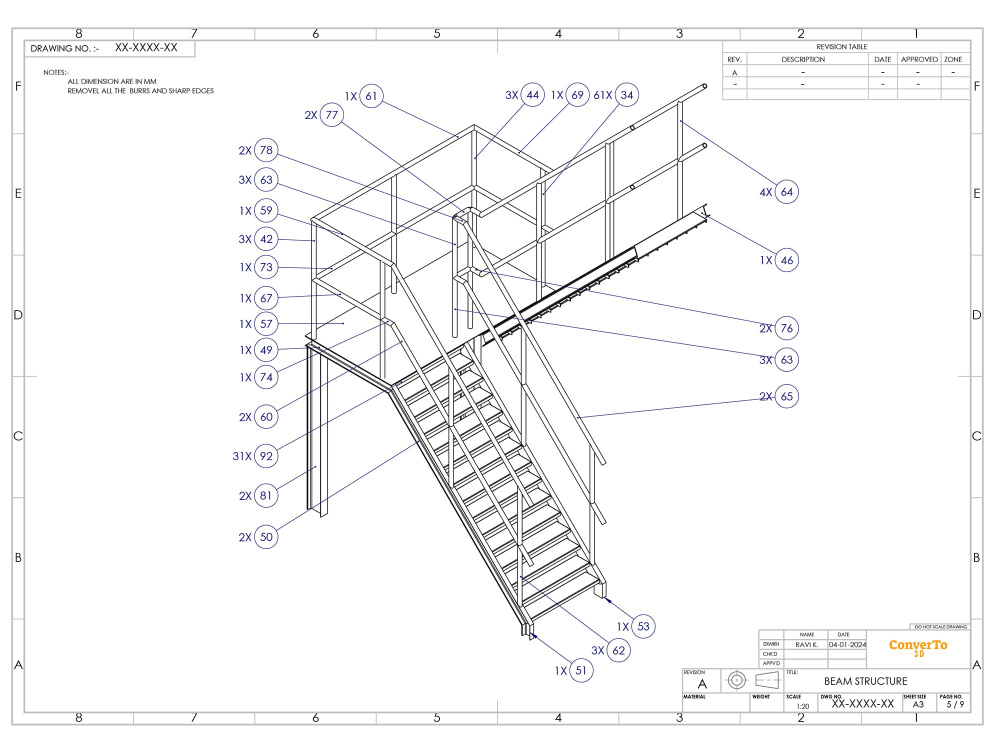

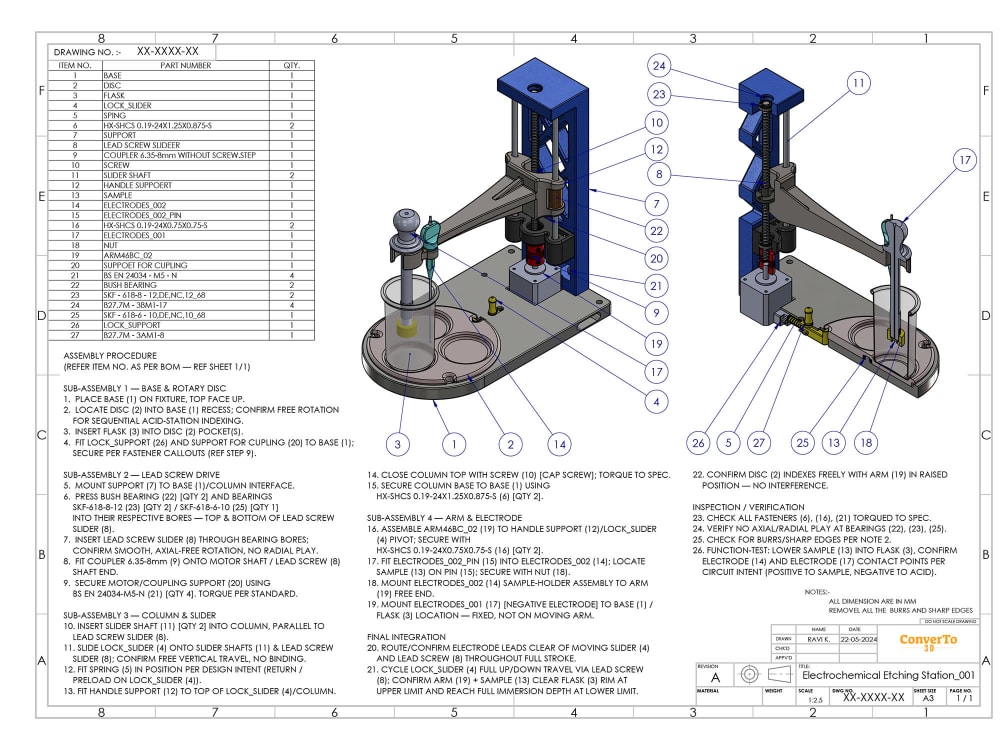

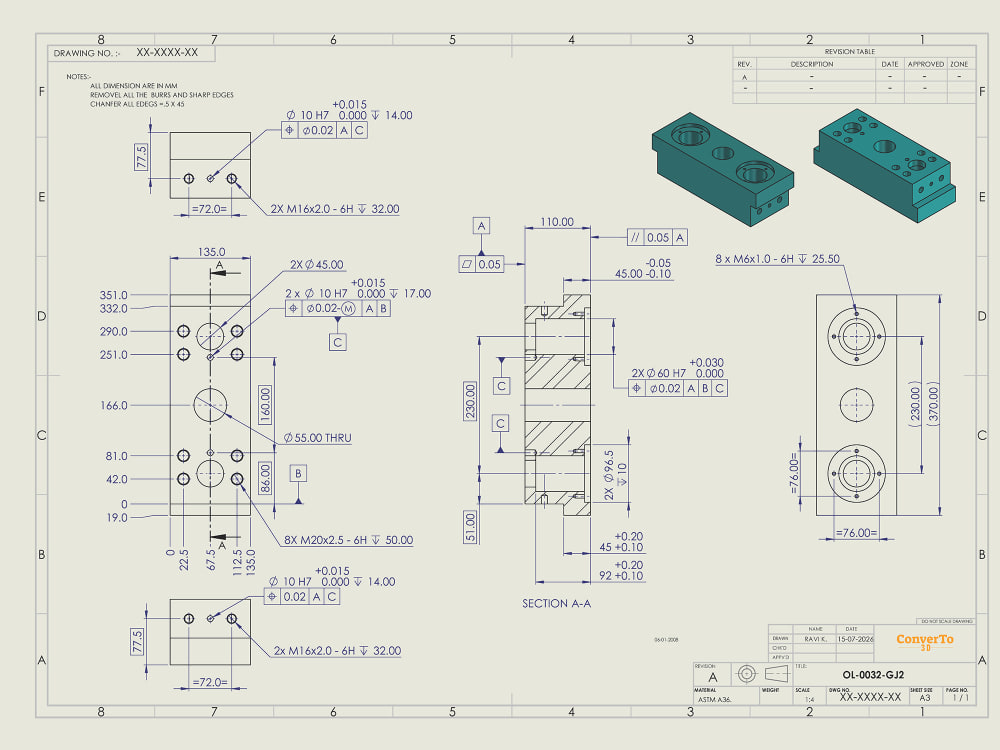

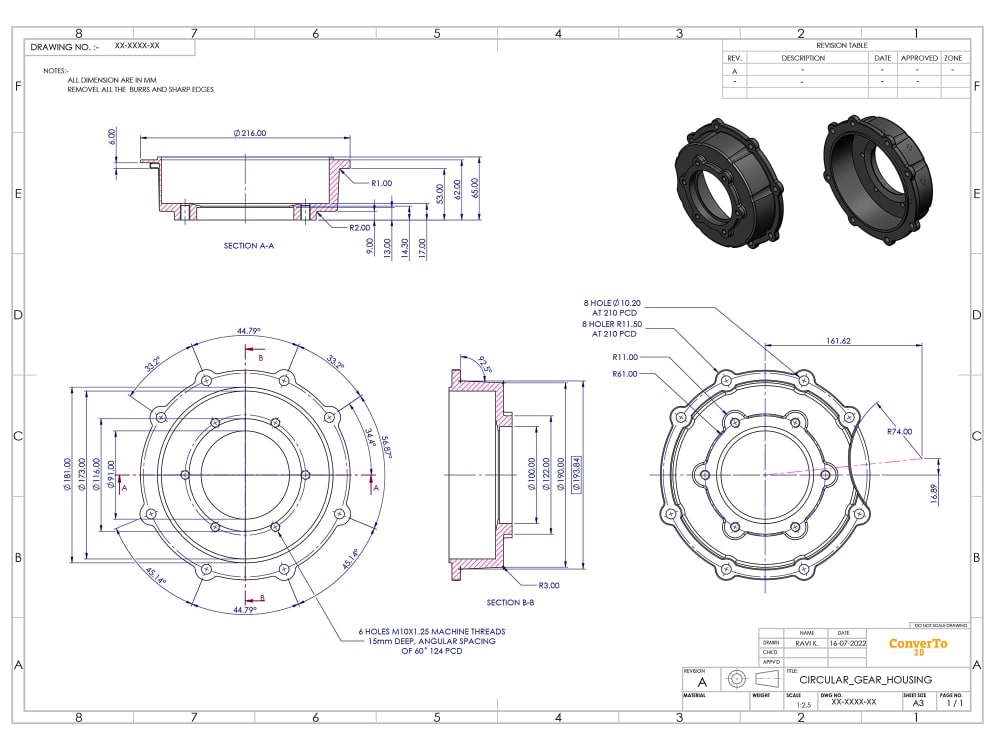

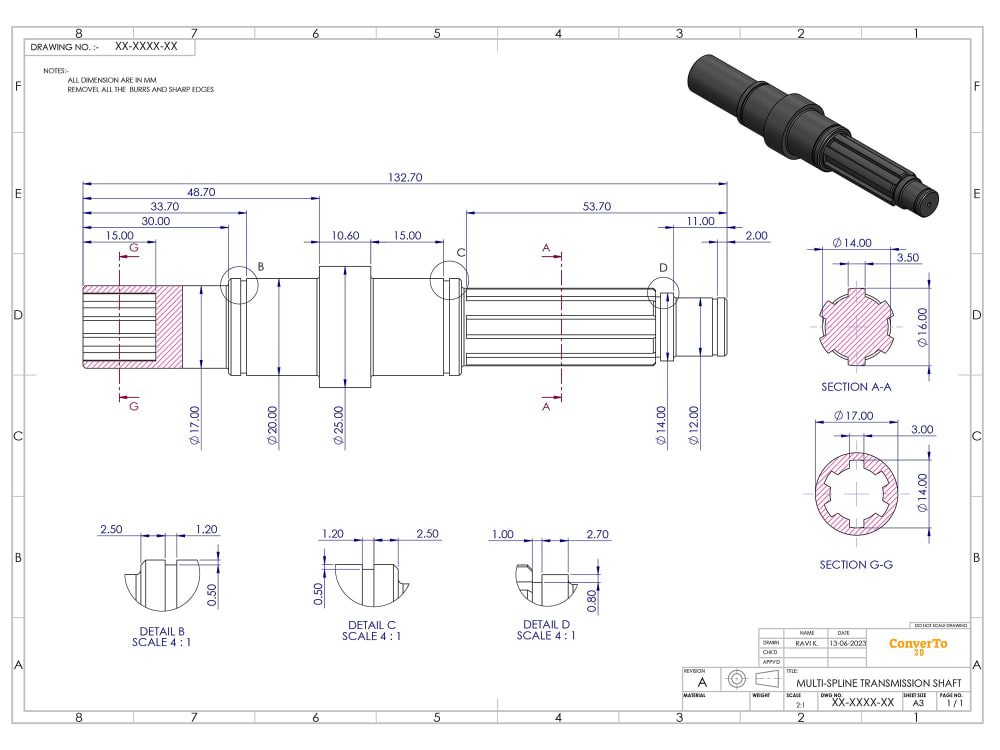

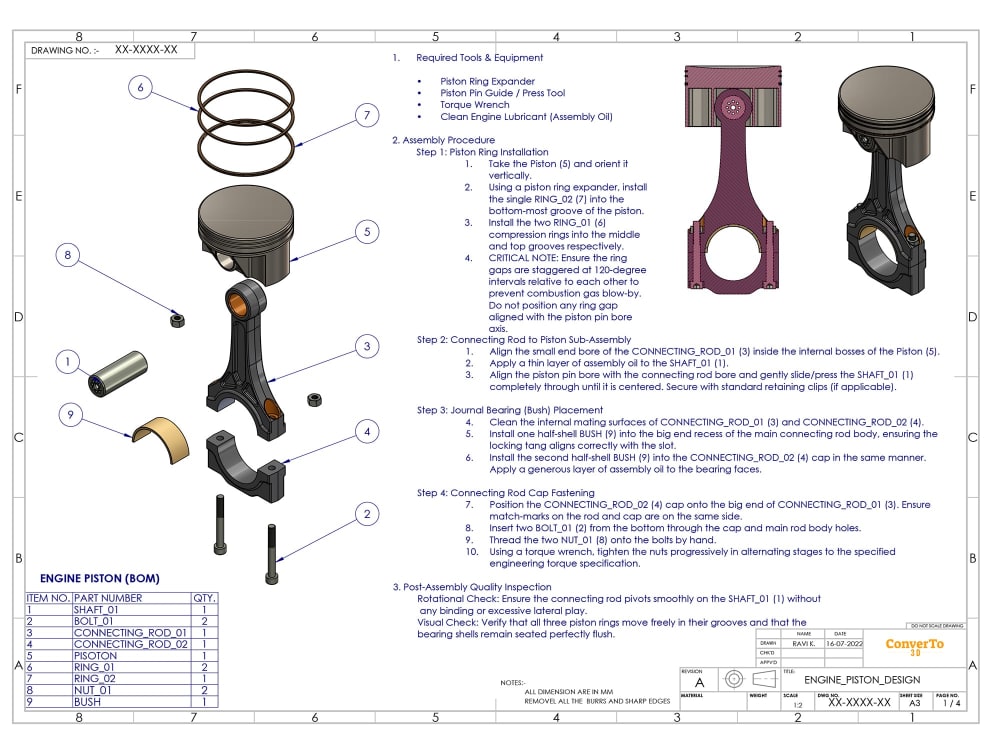

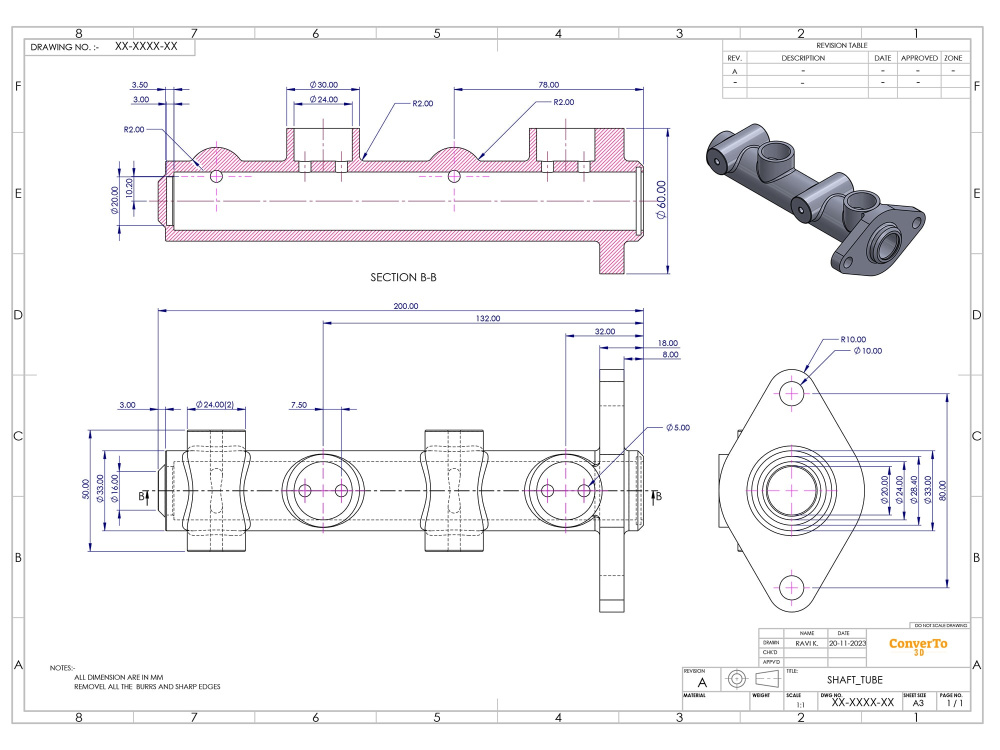

A 2D technical drawing is the final instruction your manufacturer receives. If it is incomplete, dimensioned incorrectly, or missing critical GD&T callouts, the part comes back wrong — at your cost and on your timeline.With 10+ years in mechanical design and product development, and expert command of AutoCAD, SolidWorks, and CATIA, I deliver manufacturing-ready 2D drawings your supplier can use directly without clarification or correction.What I produce: detailed part drawings with full GD&T, tolerance specifications, section views, auxiliary views, and assembly drawings with BOM. I work to ASME Y14.5, ISO 128, and IS 696 standards depending on your supplier's requirements.What I convert: 3D models to fully dimensioned 2D drawings, hand sketches to professional DWG and PDF, PDF or image files to editable DWG, and legacy drawings to updated standards.Delivery formats: DWG, DXF, PDF, and SolidWorks SLDDRW. DXF files prepared specifically for CNC machining and laser cutting workflows.Message me before ordering with your reference files and I will confirm scope and timeline before work begins.
Materials
MetalField of Expertise
Automotive, Consumer Electronics, MachineryDesign Software
AutoCAD, CATIA, Fusion 360, KeyShot, SolidWorksFile Format
DWG, JPG, PDF, SLDDRW, STEPWhat's included
| Service Tiers |
Starter
$40
|
Standard
$120
|
Advanced
$280
|
|---|---|---|---|
| Delivery Time | 2 days | 4 days | 8 days |
Number of Revisions | 1 | 1 | 2 |
Number of Drawings | 1 | 3 | 10 |
Unlimited Drawings | - | - | - |
Patent Drawing | - | - | - |
Source Files | - |
Optional add-ons
You can add these on the next page.
Additional Revision
+$20
Additional Drawing
(+ 1 Day)
+$35
Source File
+$20Frequently asked questions
6 reviews
(4)
(2)
(0)
(0)
(0)
This project doesn't have any reviews.
RA
Rechana A.
Feb 14, 2026
AutoCAD Line & Hatch Cleanup Expert Needed
Ravi completed the drafting job exactly the way I wanted him to. Will work with him again!
MK
Max K.
Sep 23, 2025
FreeCAD Expert Needed for AI Problem-Solving Evaluation
FS
Fabio S.
Dec 10, 2024
Solidworks model
Ravi, is a great professional and very good Solidworks operator!
AP
Anax P.
Mar 12, 2024
Small CAD Update
GZ
Gintautas Z.
Oct 10, 2023
Make a 3D sketch of a very simple 3D printed part
thank you
About Ravi
Mechanical Design Engineer | Injection Mold & DFM | SolidWorks | CATIA
92%
Job Success
Bokaro, India - 9:08 am local time
With 10+ years in mechanical design and product development, a Masters in CAD/CAM, and a Top Rated track record on Upwork, I deliver precision designs that go straight to manufacturing without surprises. My edge is not just CAD proficiency — it is deep manufacturing knowledge in injection molding, sheet metal, and plastic part design, built into every model I create.
Core Services
-3D CAD Modeling and Design — From concept sketches to production-ready models across SolidWorks, CATIA, AutoCAD, and Fusion 360.
-Injection Molding and Plastic Part Design — Draft angles, wall thickness, and fully DFM-compliant geometry.
-Sheet Metal Design — Bend allowances, flat patterns, and tooling-ready drawings.
-2D and 3D Technical Drawings — GD&T, BOM, assembly guides, and manufacturing-ready drafts.
-DFM Reviews and Design Validation — Identifying and resolving costly errors before prototyping or tooling begins.
-Photorealistic Rendering — High-quality visuals for client presentations, marketing, and prototyping reviews.
-CAD File Conversion — Mesh to STEP/IGES, legacy file recovery, and cross-format compatibility.
Why Clients Choose Me
Every design is evaluated for real-world producibility, not just visual accuracy. My academic foundation in CAD/CAM combined with over a decade of hands-on industry experience means I approach each project with both technical depth and practical manufacturing awareness. I manage each engagement from initial concept through material selection, DFM review, and final production-ready deliverables — with an average response time under four hours and clear communication at every stage.
Industries Served
Automotive, Industrial Equipment, Consumer Products, Medical Devices, Aerospace, Robotics.
Your design should be right the first time. Message me with your project requirements and I will tell you exactly how I would complete it.12
Steps for completing your project
After purchasing the project, send requirements so Ravi can start the project.
Delivery time starts when Ravi receives requirements from you.
Ravi works on your project following the steps below.
Revisions may occur after the delivery date.
Step 1 — Reference Review and Scope Confirmation
Drawing sheet set up with correct title block, projection method, and view arrangement — front, top, section, auxiliary, and isometric as required by the part geometry.
Step 3 — Dimensioning, GD&T, and Annotation
All dimensions, tolerances, GD&T callouts, surface finish symbols, and BOM entries added and verified against reference geometry before the drawing is sent for client review.
