You will get Fabrication-Ready Sheet Metal Drawings with Flat Patterns & GD&T
Top Rated
Top Rated
Project details

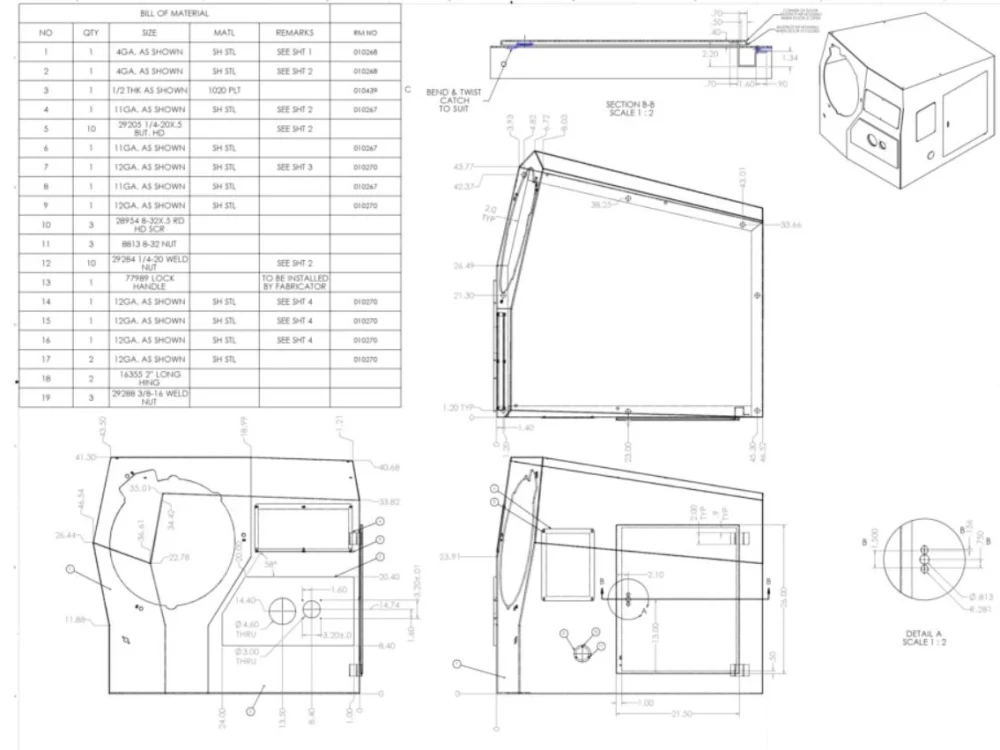

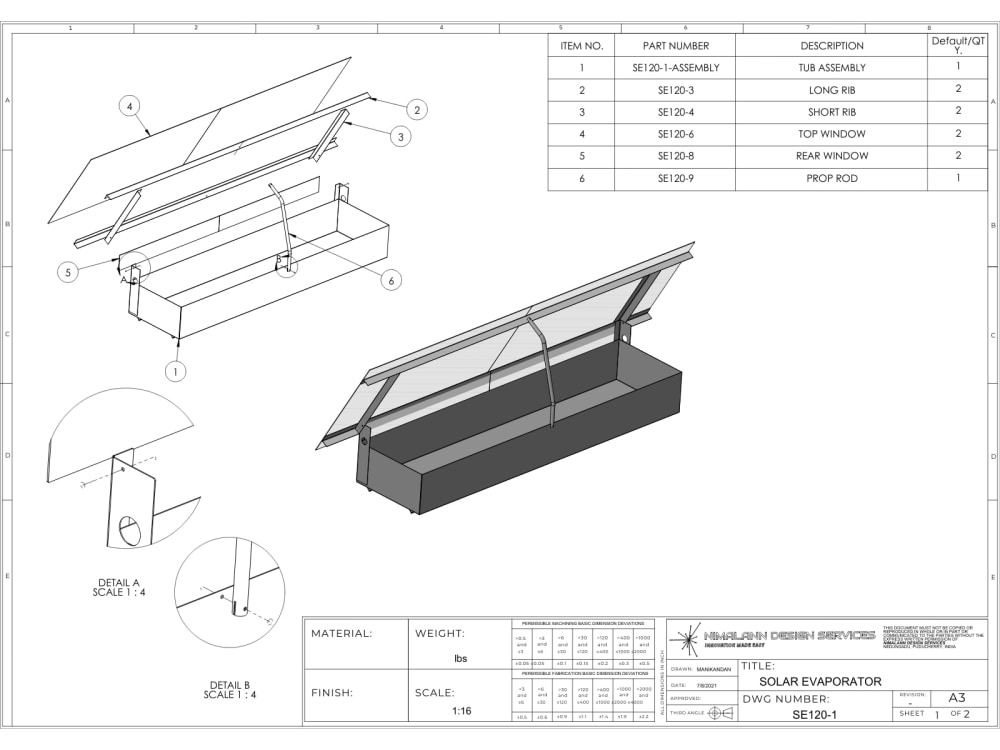

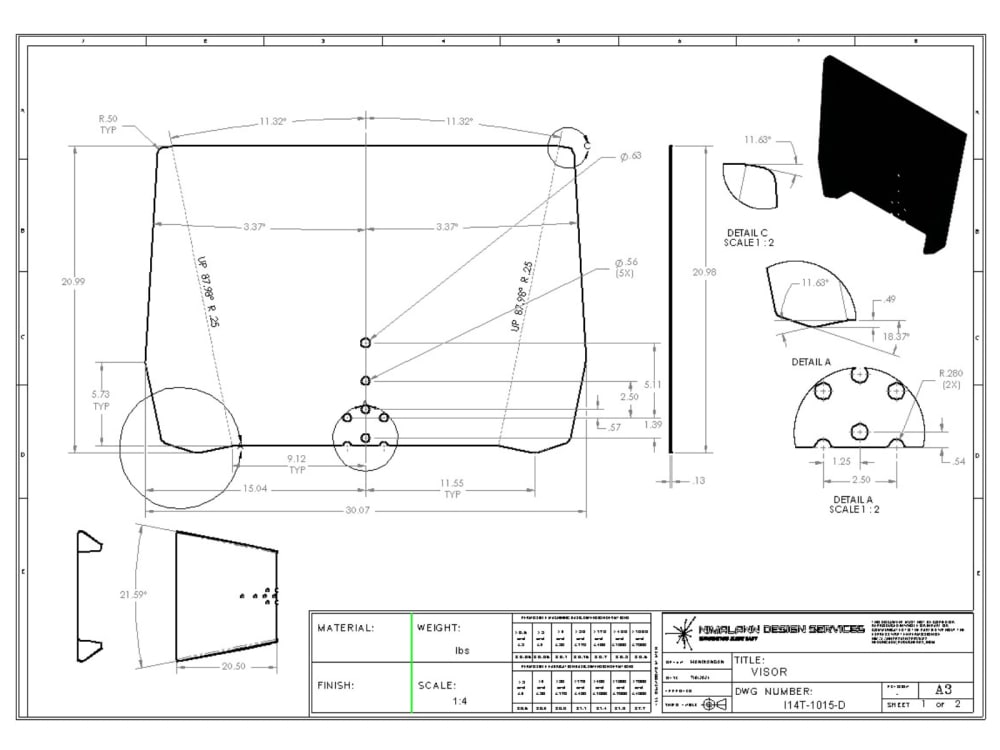

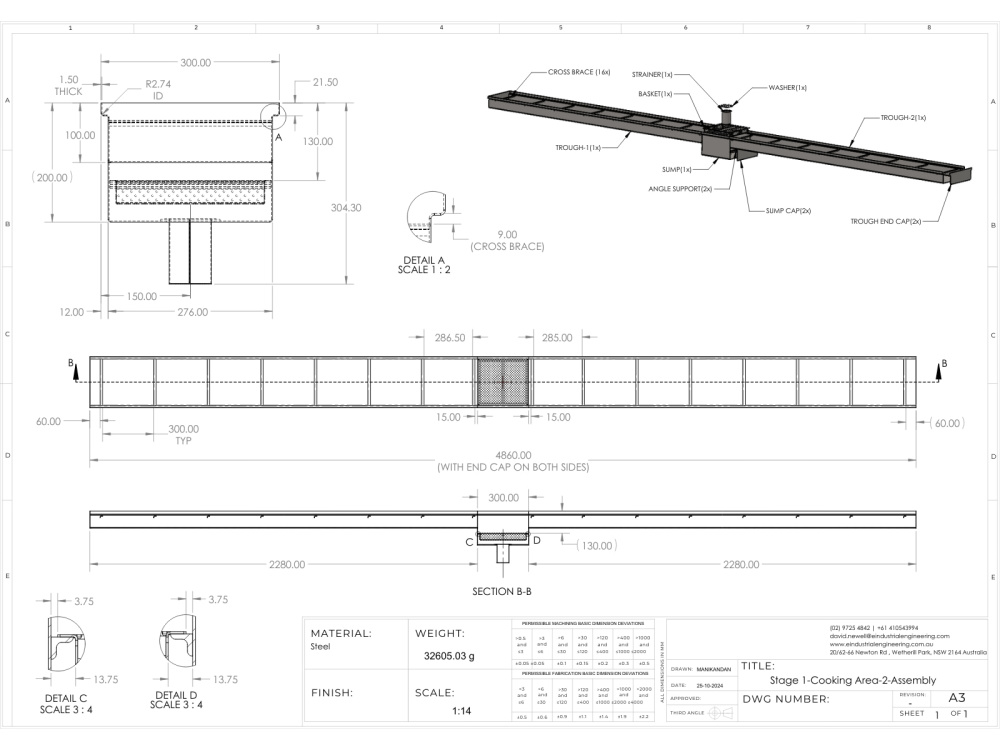

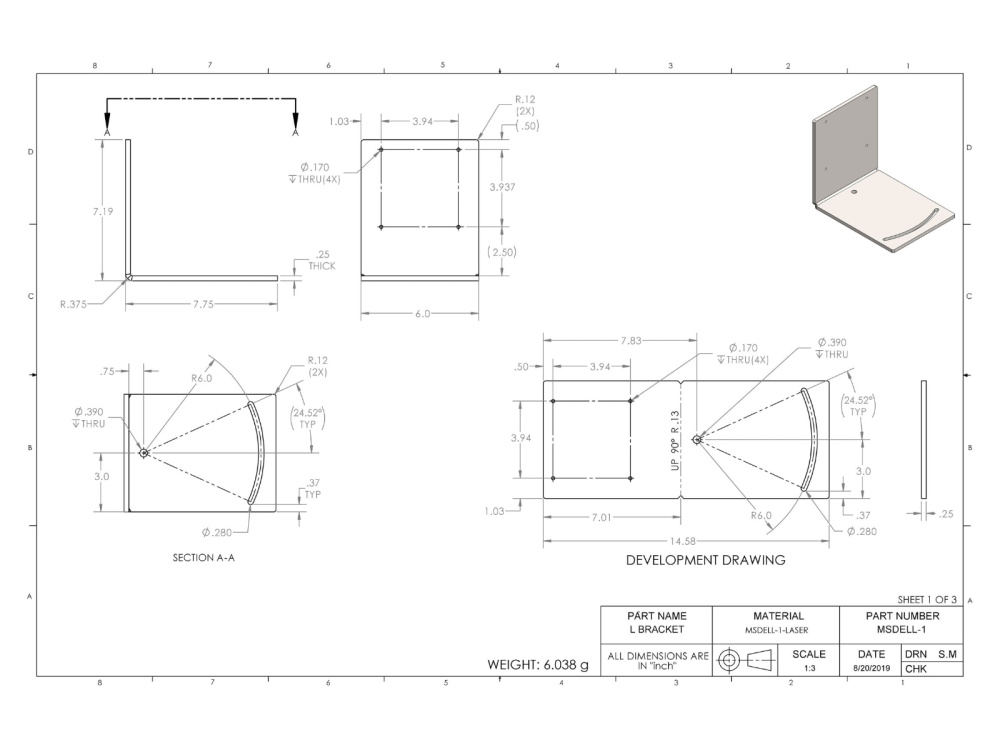

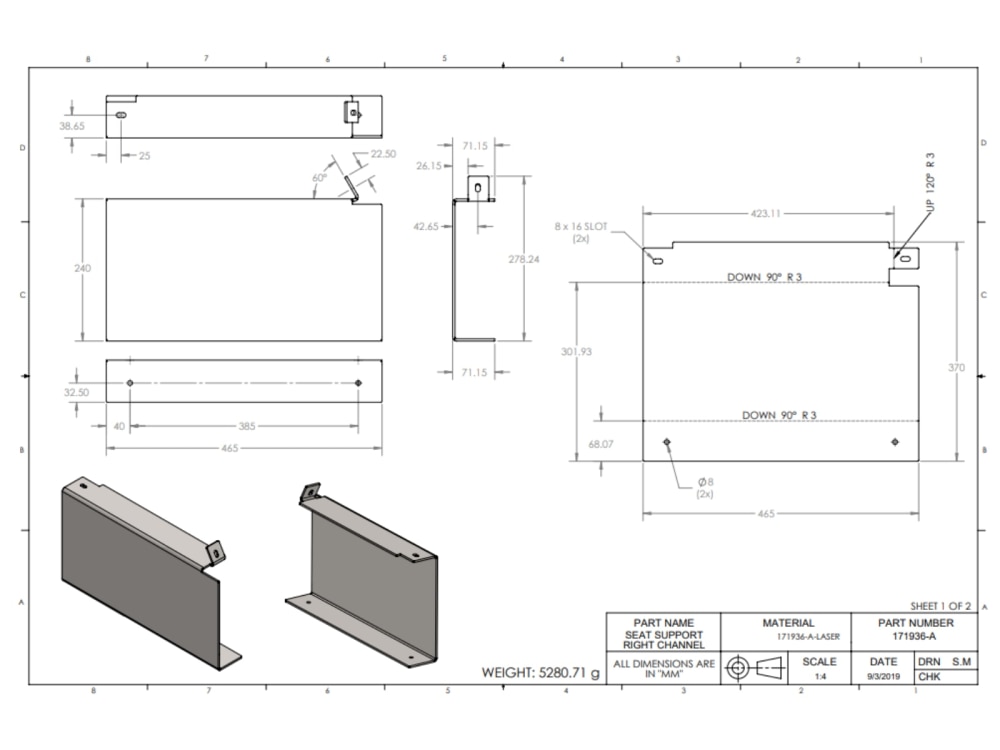

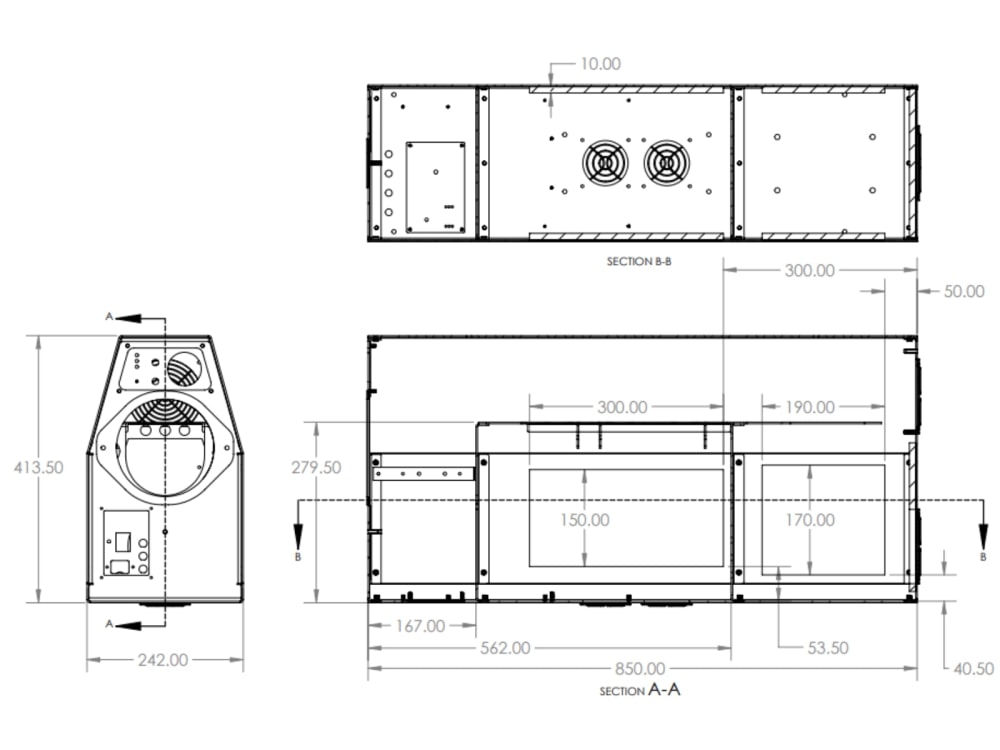

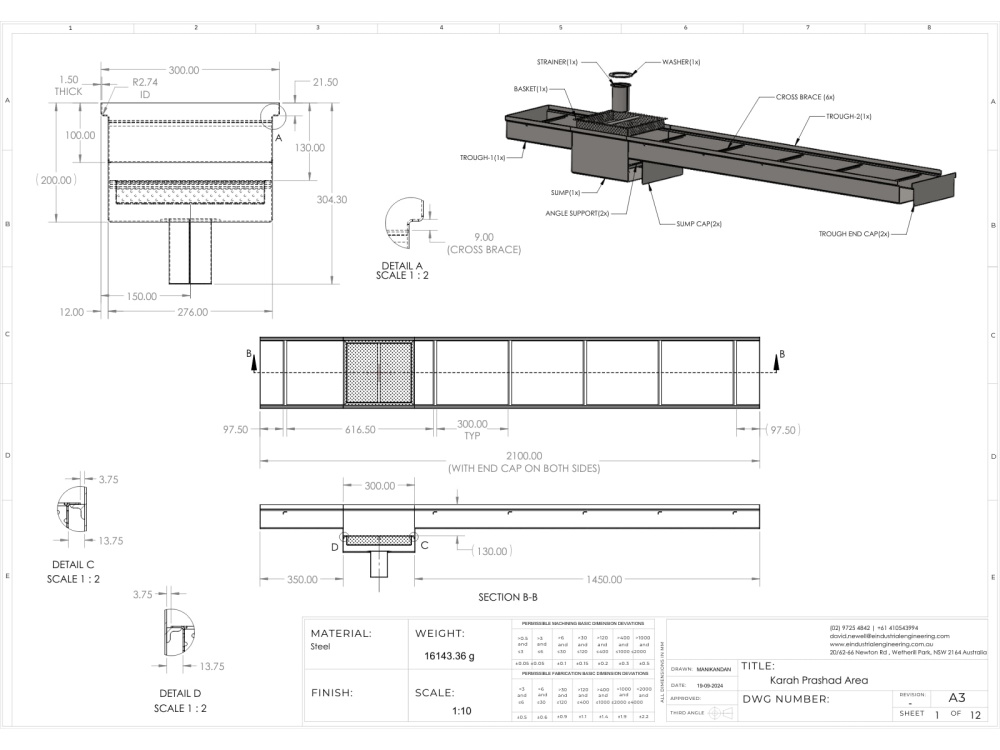

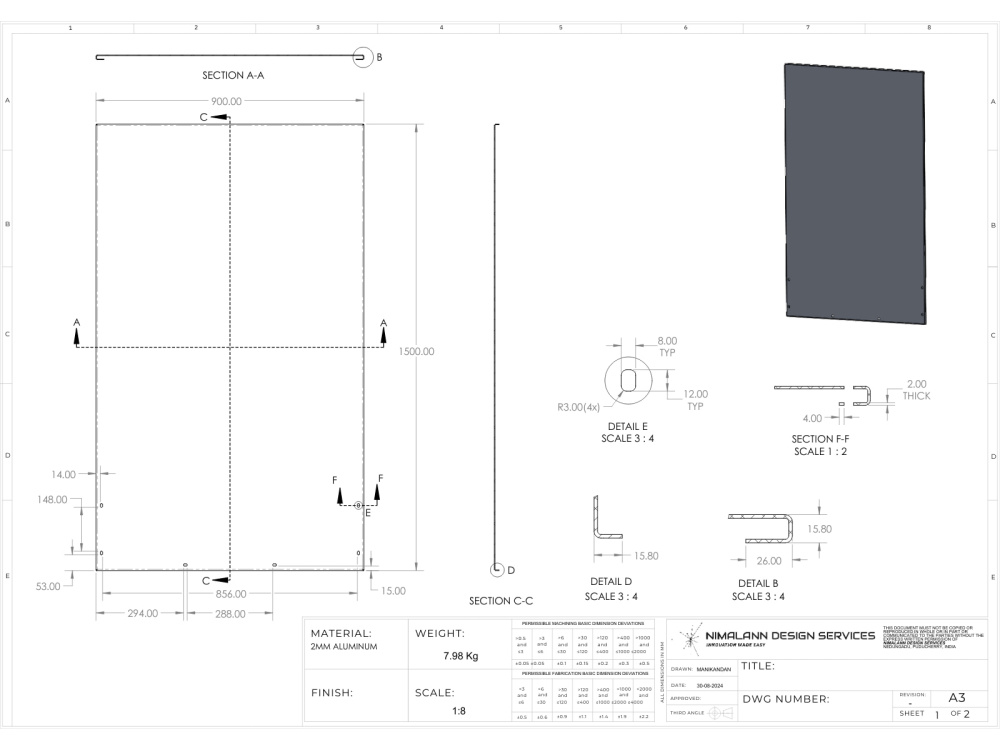

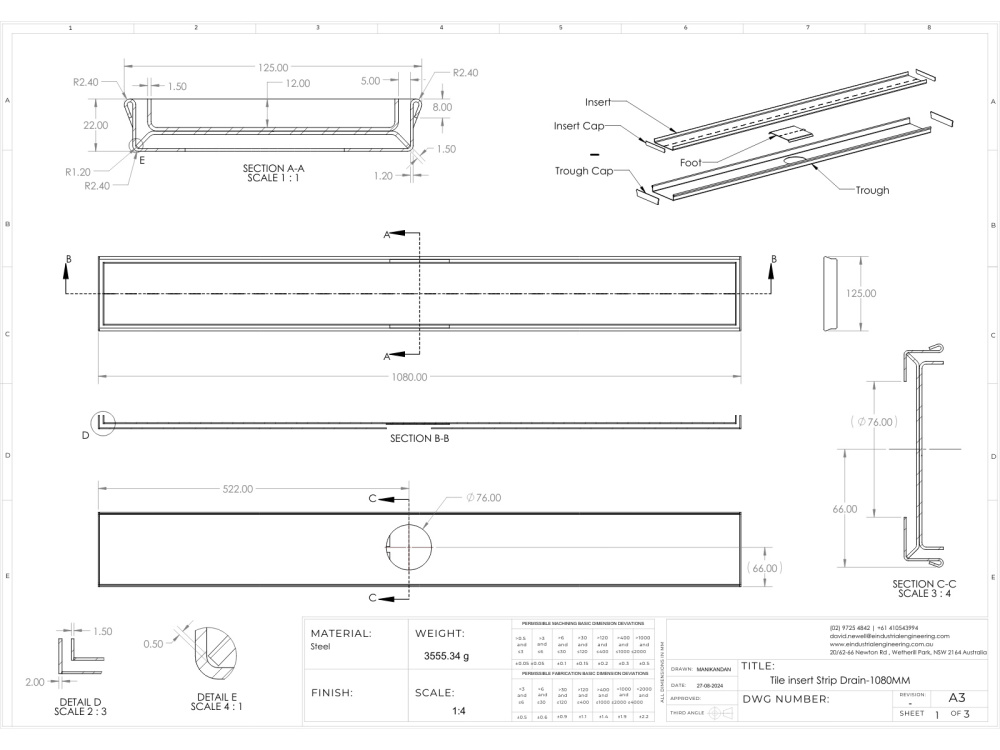

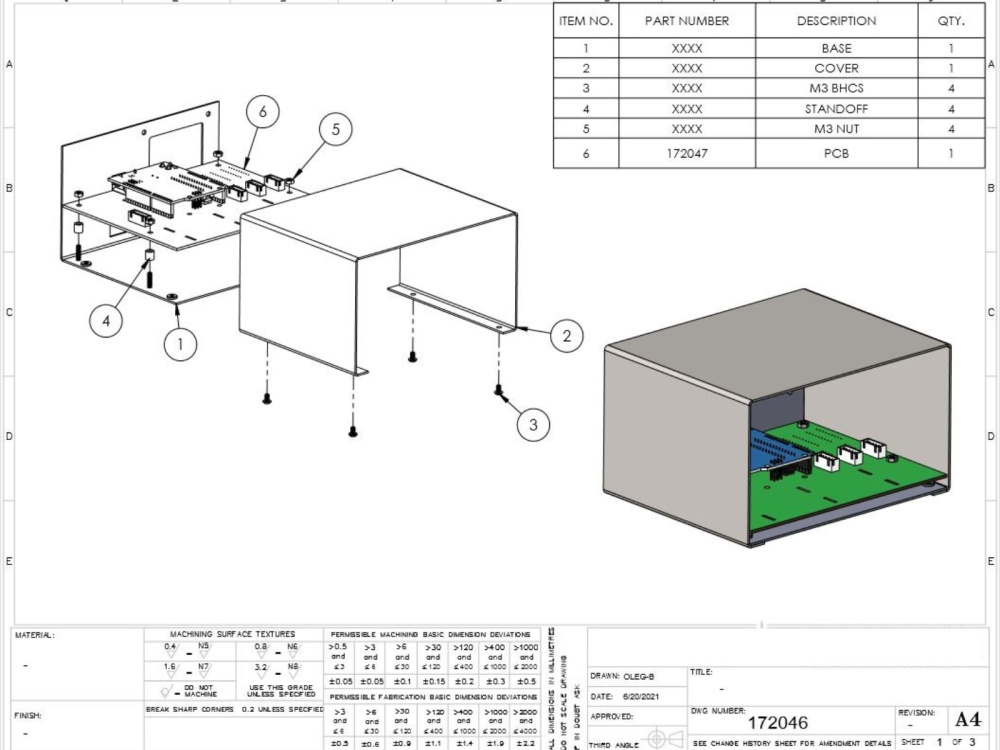

You will receive a professional 3D model of your sheet metal design along with fully detailed development drawings for manufacturing. I will provide multi-layered DXF files with bending notes, dimensions, hole positions, and fabrication guidelines to ensure error-free production. Weldment notes will be included when required, and I can also provide realistic renderings for better visualization if needed.
Materials
MetalField of Expertise
Consumer Electronics, Lighting, MachineryDesign Software
KeyShot, SolidWorksFile Format
DWG, SLDASM, SLDPRT, STEP, OtherWhat's included
| Service Tiers |
Starter
$75
|
Standard
$200
|
Advanced
$500
|
|---|---|---|---|
| Delivery Time | 1 day | 3 days | 7 days |
Number of Revisions | 1 | 2 | Unlimited |
Number of Drawings | 1 | 6 | 30 |
Unlimited Drawings | - | - | |
Patent Drawing | - | ||
Source Files |
Optional add-ons
You can add these on the next page.
Fast Delivery
+$50 - $150
Additional Revision
+$25
Additional Drawing
+$40
Patent Drawing
+$100
BOM & Cut List Preparation
+$50
DFM (Design for Manufacturing) Review
+$100Frequently asked questions
