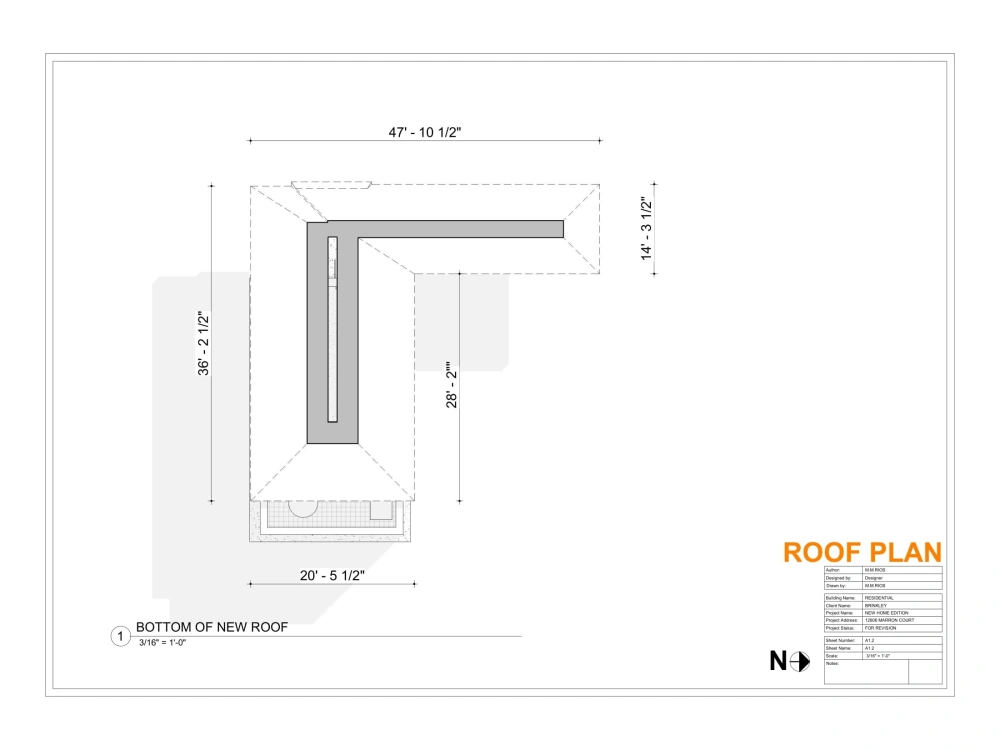

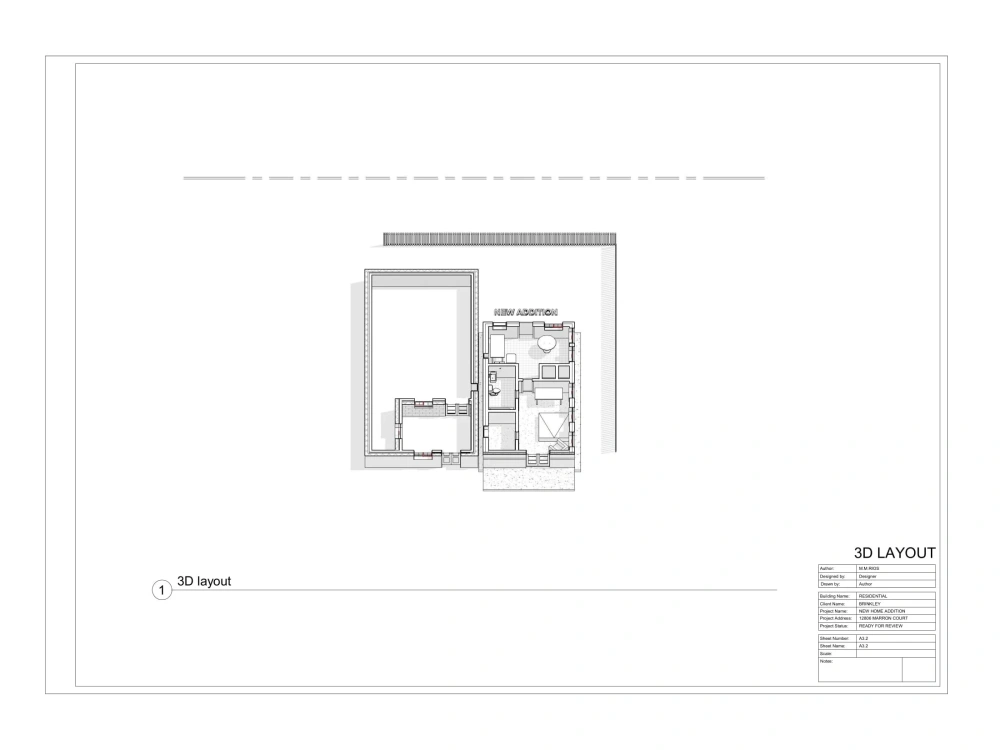

You will get 2D and 3D complete drawing sheet sets, modified floor plans.
You will get 2D and 3D complete drawing sheet sets, modified floor plans.
Project details
If you want a high-quality residential drafting service with a quick turnaround time, consider me for your projects. When designing and building a home, it is essential to draft a detailed floor plan of the area.
Project Scale
NeighborhoodBuilding Type
Commercial, Office & Work Space, ResidentialFile Format
BLEND, DWG, OBJ, PDF, RVT, SKP, STLWhat's included
| Service Tiers |
Starter
$100
|
Standard
$350
|
Advanced
$800
|
|---|---|---|---|
| Delivery Time | 2 days | 3 days | 8 days |
Number of Revisions | 2 | 3 | 3 |
Number of 2D Drawings | 2 | 6 | 20 |
High Level of Details | |||
Graphic Enhancements | |||
Source Files | - | ||
Layout Sheets |
Optional add-ons
You can add these on the next page.
Fast Delivery
+$100 - $300About Martin
Drafting CAD Specialist
Eagle Pass, United States - 12:05 am local time
• CAD system design and administration
• Proficient in most Autodesk programs from 2022 to prior years
• Producing complete drawing sets- from concept to completion
• Working directly with builders, engineers, and customers to meet both their design budgets and deadlines
• Able to take a design change throughout a set of drawings
Steps for completing your project
After purchasing the project, send requirements so Martin can start the project.
Delivery time starts when Martin receives requirements from you.
Martin works on your project following the steps below.
Revisions may occur after the delivery date.
Verification
Verify the given measurements and accuracy has not changed.
Project Setup
Set the projects sheet list, numbers, floor levels. Scale to size the annotations that are going to be used in these drawings.
