You will get Design and Analysis of Steel Structure
Top Rated
You will get Design and Analysis of Steel Structure
Project details

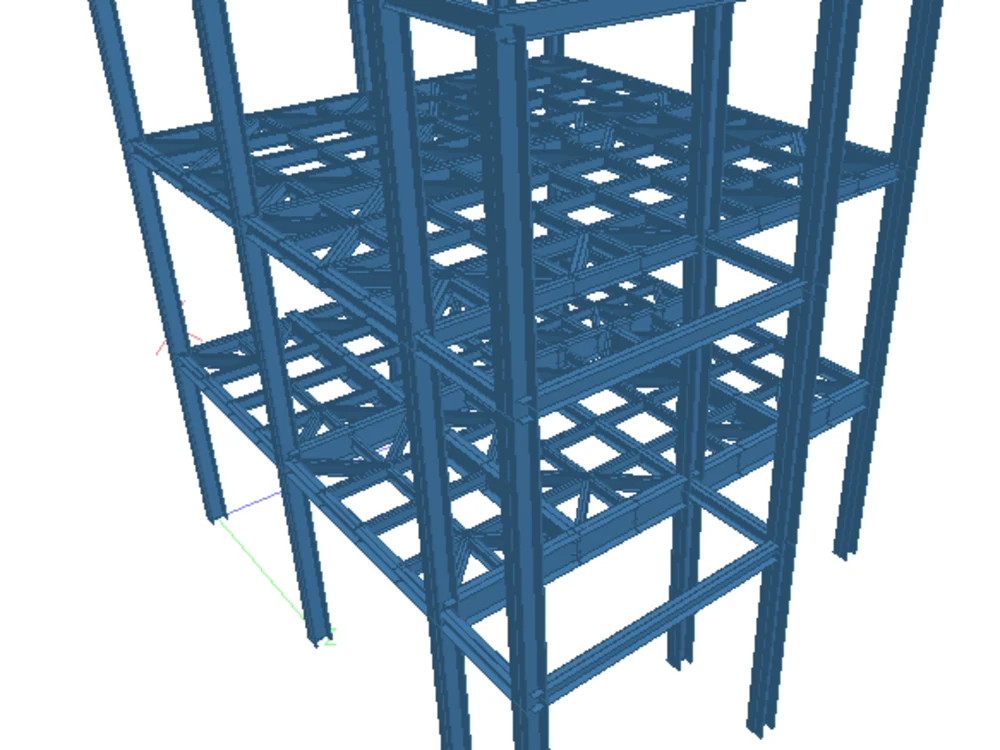

I design equipment mounted Steel structure on staad pro software and calculate the total weight of steel and analysis the steel structure and cost effective structure for client
Field of Expertise
Structural EngineeringBuilding Type
IndustrialBIM Software
Autodesk AutoCADFile Format
DWG, STEP, OtherWhat's included
| Service Tiers |
Starter
$50
|
Standard
$75
|
Advanced
$100
|
|---|---|---|---|
| Delivery Time | 2 days | 2 days | 2 days |
Number of Revisions | 2 | 4 | 5 |
Number of 2D Drawings | 1 | 2 | 2 |
Level of Detail | 3 | 3 | 3 |
Design Analysis | |||
Architectural Walkthrough | - | - | - |
Native BIM Source Files | - | - | - |
Model Audit & Verification | - | - | - |
19 reviews
(19)
(0)
(0)
(0)
(0)
This project doesn't have any reviews.
GH
Gabriel H.
Jun 11, 2024
Staad modeling
very good job
JM
James M.
May 17, 2024
Steam Heating Design for HFO Tanks
JM
James M.
May 17, 2024
Design of LPG tanks (pressure vessels) capacities 1000L, 1750L, 3810L, 10CM to ASMEVIII and EN13445
GP
Gregor P.
May 15, 2024
API 650 100m3 HFO TANK
Job well done.
ME
Mourad E.
Mar 21, 2024
Stress analysis and Calculations of Steel Skid including lifting
Mr Hafiz showed great skill and knowledge in the area of skid structural designs and analysis . Thanks
About Hafiz Muhammad Abdur
Pressure Vessel|Process design|Chimney/ stack|API 650|UL-58|UL142/ASME
100%
Job Success
Riyadh, Saudi Arabia - 9:56 am local time
- Mechanical and Process Design of pressure vessels and heat exchangers in accordance with TEMA, ASME Sec VIII (Div. 1 & 2), and EN13445 standards, utilizing Codware Compress, PV Elite, Aspen HYSYS, and HTRI software.
- Design of API 650 & 620, AWWA D-100-11, and EN-14015 standard tanks, including rectangular tanks, using AMETank and Roark's formula.
- Chimney/stack design per ASME STS-1 standards, with proficiency in mecastack software.
- Mechanical and Process Design of fire tube and water tube boilers, adhering to ASME SEC I standards.
- 3D modeling and detailing (fabrication drawings) expertise in Autodesk Inventor and Solidworks.
- Design and analysis of steel structures using Staad Pro.
- Piping Stress analysis and creation of isometric drawings.
My extensive experience and skillset enable me to deliver high-quality designs and solutions in the field of static equipment engineering."
Steps for completing your project
After purchasing the project, send requirements so Hafiz Muhammad Abdur can start the project.
Delivery time starts when Hafiz Muhammad Abdur receives requirements from you.
Hafiz Muhammad Abdur works on your project following the steps below.
Revisions may occur after the delivery date.
Design Condtions
Tell me design wind speed, seismic zone
