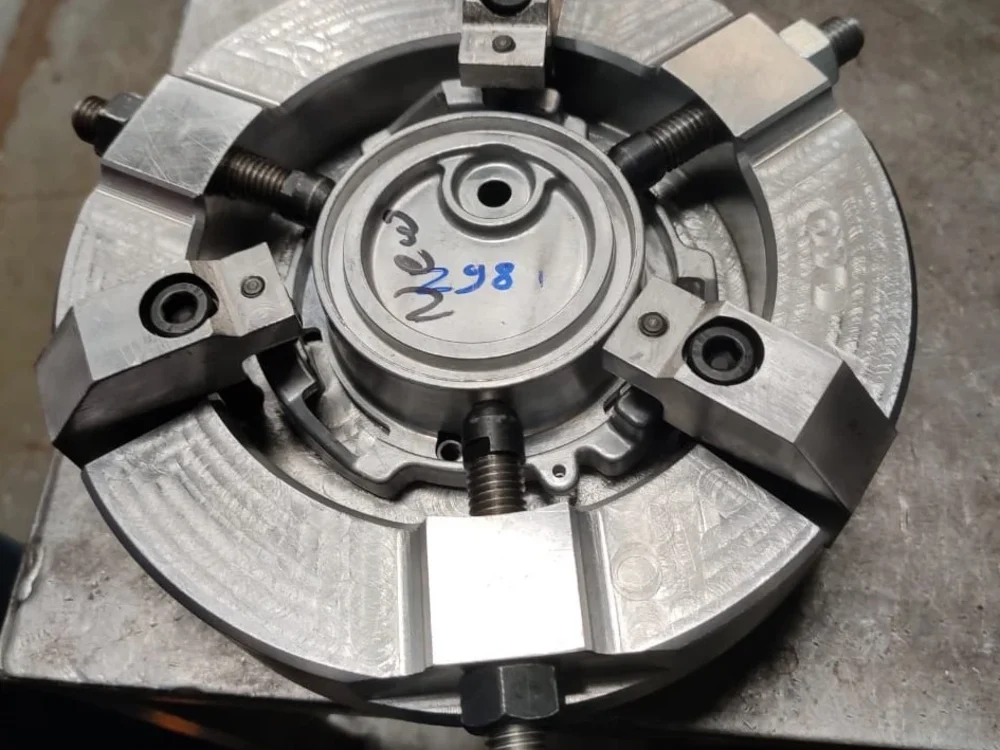

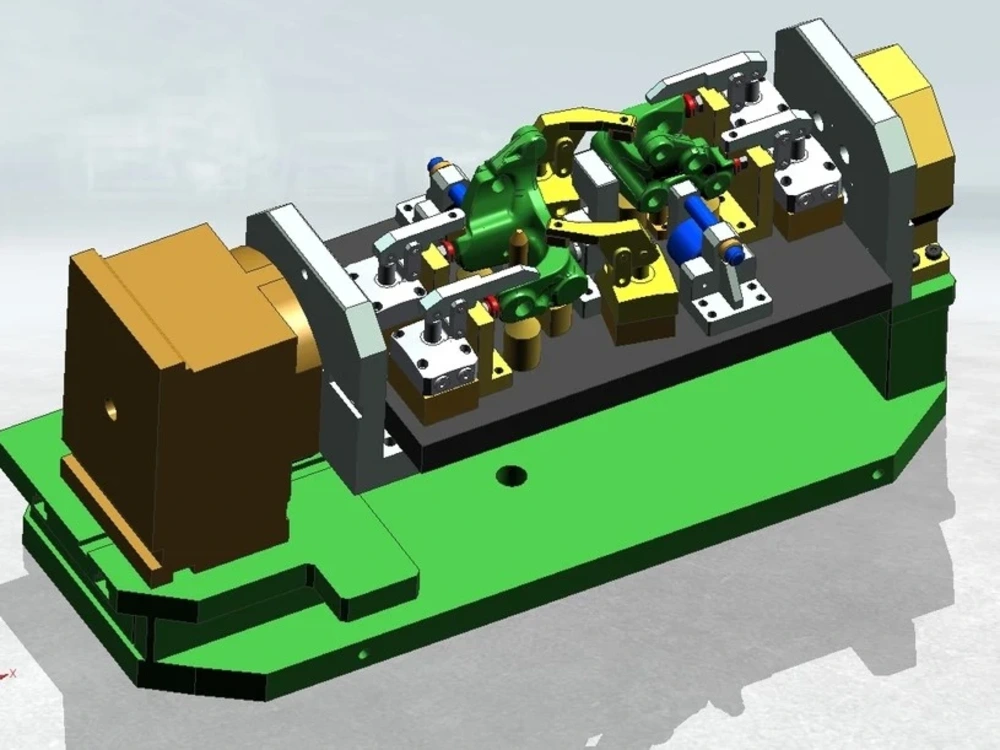

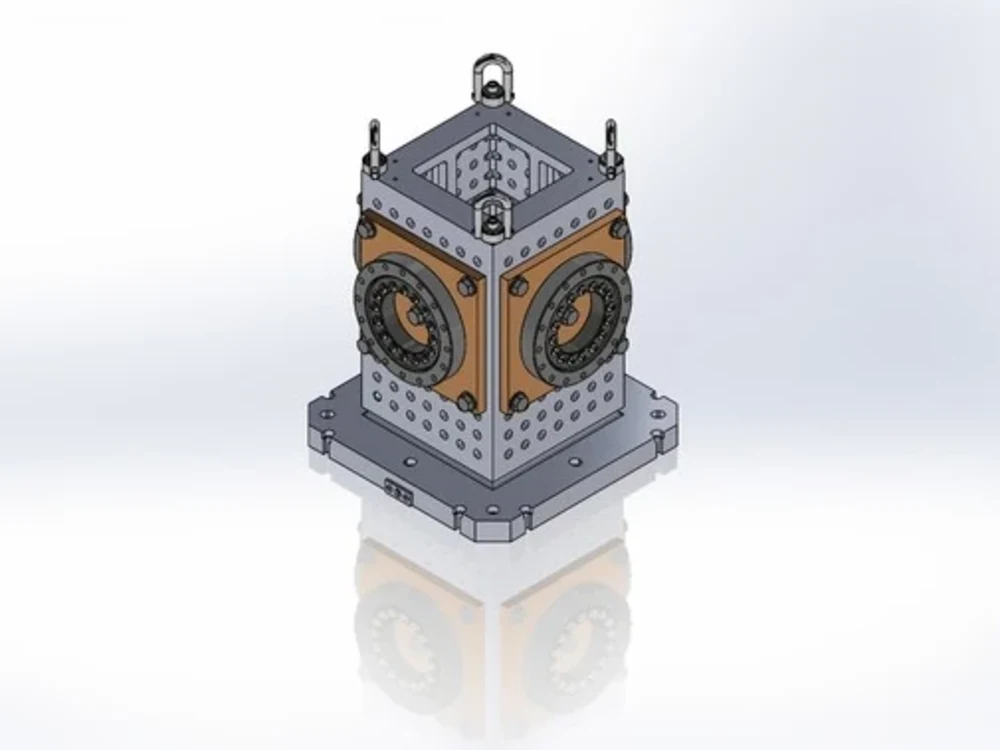

You will get Jigs Fixture Design 3,4,5 Axis or Turning using CATIA
Project details
Most of my Projects focus on to accomplish the confidence of the company by using the innovative design , cycle time reduction & mechanical upgrade and sustainable way of development and to identify and analyze the production process.
Field of Expertise
Automotive, MachineryDesign Software
CATIAFile Format
DWG, JPG, PDF, SLDPRT, STEPWhat's included
| Service Tiers |
Starter
$51
|
Standard
$97
|
Advanced
$138
|
|---|---|---|---|
| Delivery Time | 2 days | 4 days | 4 days |
Number of Revisions | 0 | 0 | 0 |
3D Modeling | |||
Texturing & Lighting | - | - | - |
Animation | - | - | - |
Source Files | |||
Background/Scene | - | - | - |
Enhanced Detailing | - |
About Sunil
Jig & Fixture Design,NC Programming,Process Development (Method Engg.)
Solapur, India - 4:45 pm local time
You came to the right place Professional 2d and 3d Part Design
I have 18+ years of working & freelance experience into the Manufacturing Industry, handling profiles into Product & Process Development, Fixture Designing, Vendor Development etc.
# I was successfully completed projects of Aerospace OEM's & Tier 1 suppliers like Airbus, Boeing,Honeywell,Moog,Goodrich, Eaton,Parker etc.
# Design of Multi Axis Machining Fixtures and Assembly Fixtures, Special process fixtures, Inspection fixtures.
If you have something in mind which you like to make existing, you are at the right place to place an order. Feel free to ask any type of question.
Following are the services offered by me:
•Jigs, Fixtures Designing, NC Programming & Reverse Engineering
•CATIA V5 3D Modelling, Assembly & 2D Mechanical Drafting & Part process wise drafting.
•2d to 3d convert
•3d STP/IGS Model
Steps for completing your project
After purchasing the project, send requirements so Sunil can start the project.
Delivery time starts when Sunil receives requirements from you.
Sunil works on your project following the steps below.
Revisions may occur after the delivery date.
Step 1
Addressing customer requirements
Step 2
Understanding customer exact requirements through series of questions in regards to the product
