🚀 Production-Ready Sheet Metal Design & Engineering
Looking for a Sheet Metal Expert? I specialize in creating manufacturing-ready designs for laser cutting, bending, and welding. My background in the automotive industry ensures your parts are robust, precise, and cost-effective.
✅ WHY HIRE ME?
• Manufacturing Knowledge: I account for bend radii, material thickness, and tolerance stack-ups.
• Optimization: I reduce waste through smart nesting and part splitting.
• Automotive Specialist: Expert in Roof Racks, Carrier Bars, Baskets, and Body Protection Kits.
• Problem Solver: I fix interference issues and optimize designs for easier assembly.
🛠️ SERVICES & DELIVERABLES

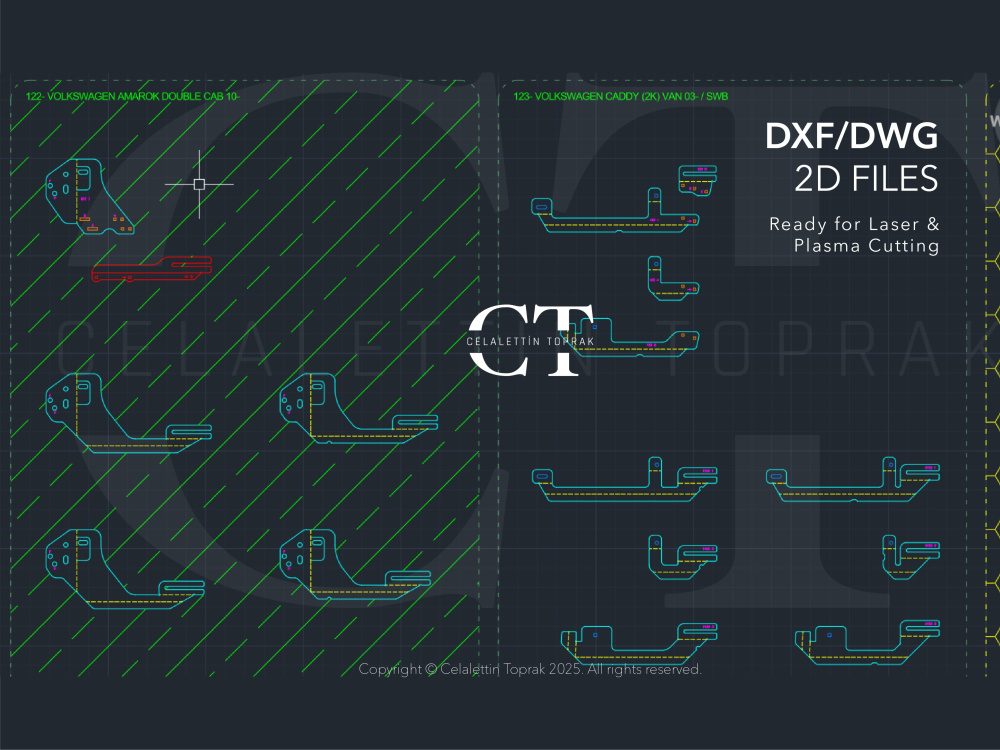

• 2D DXF/DWG files ready for Laser/Plasma Cutting

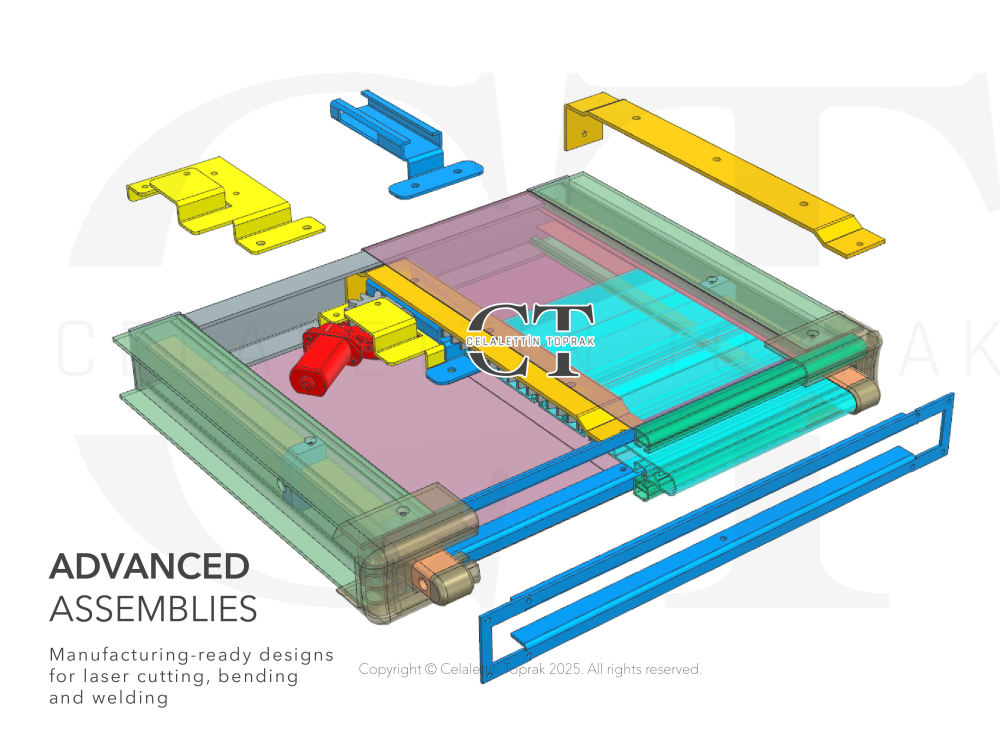

• 3D STEP/IGES models for assembly checks
• 2D Technical Drawings (PDF) with bending dimensions
• Press Brake Tooling optimization (Gussets, Flanges)

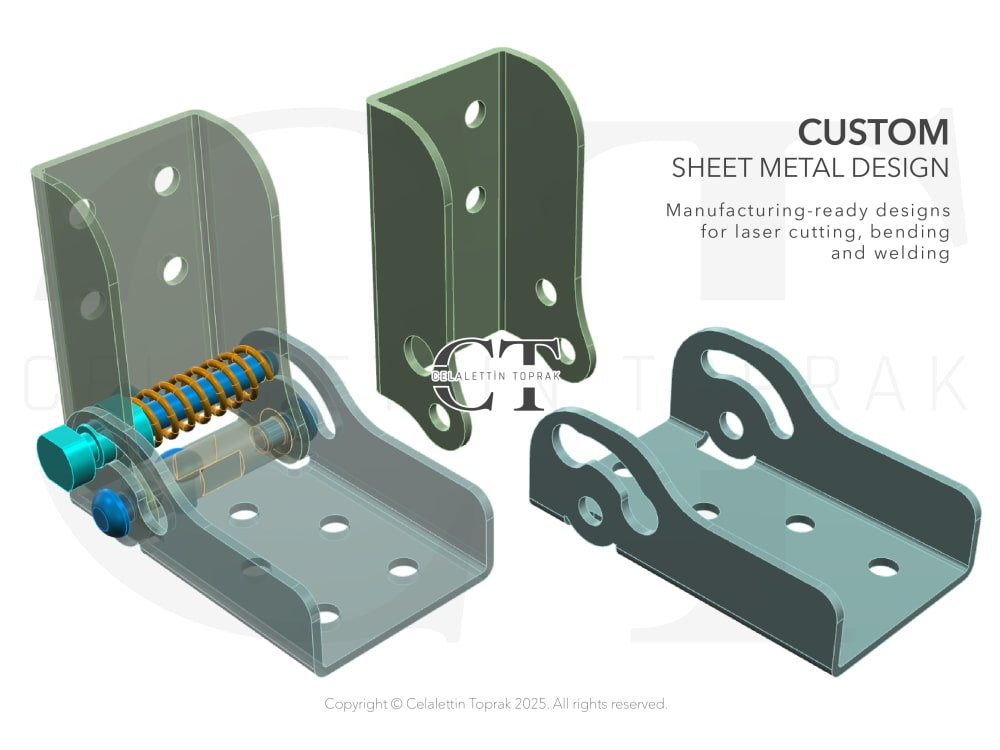

• Sheet Metal Enclosures & Brackets

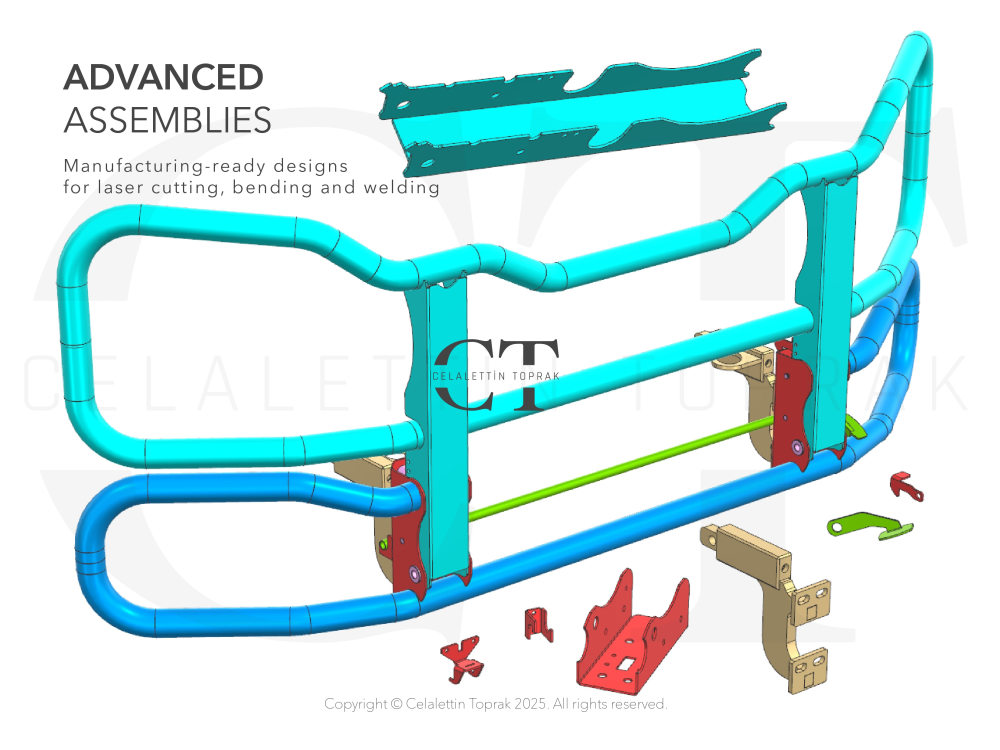

• Weldment Structures & Jig Design

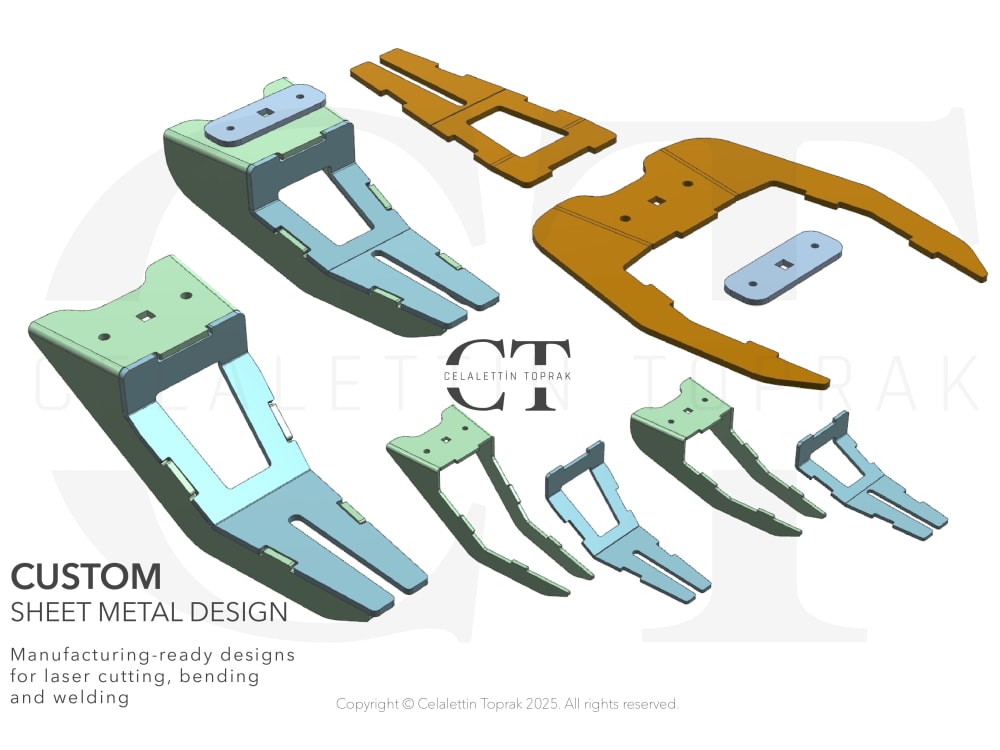

• Flat Pattern Unfolding (K-Factor based)
📂 SOFTWARE EXPERTISE:
• Siemens NX (3D Modeling & Sheet Metal)
• Autodesk AutoCAD
• Adobe Illustrator
Place your order today to get professional engineering support!
