You will get professional 3D and 2D models for Industrial and Commercial Products
Project details

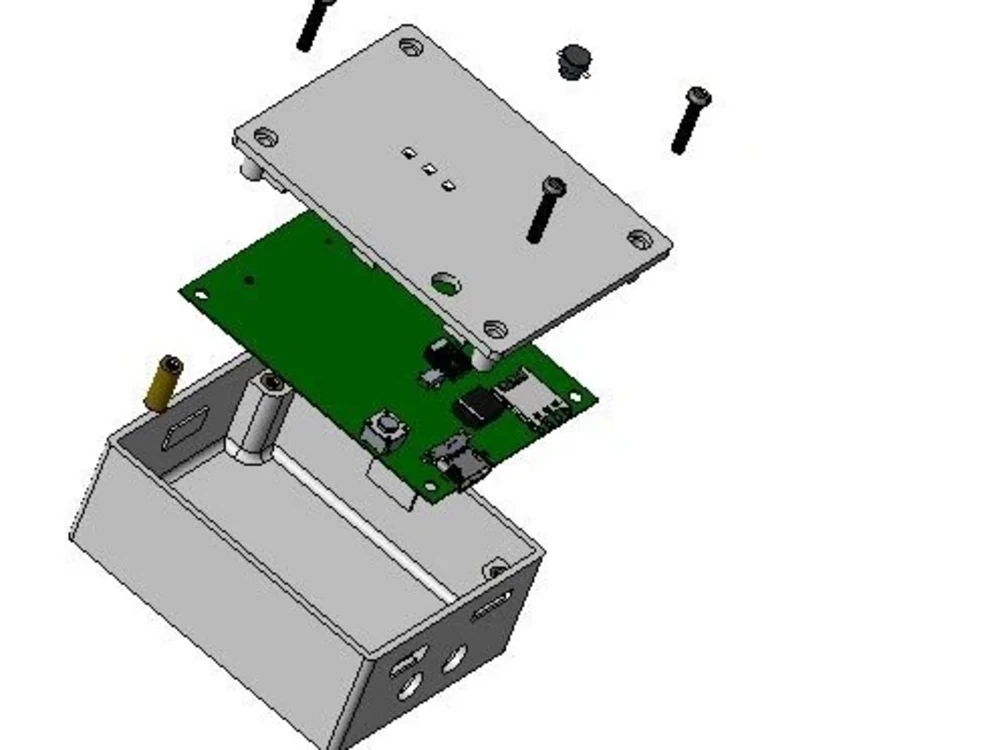

I offer professional 3D and 2D mechanical design and modeling for industrial enclosures, commercial housings, IoT product casings, consumer electronics, aerospace components, space-grade hardware, and MIL-SPEC compliant enclosures. My designs are optimized for manufacturability, durability, ergonomics, thermal management, and material efficiency, ensuring your product is ready for injection molding, CNC machining, sheet metal fabrication, or 3D printing.
You will receive high-quality 3D STEP files, IGES files, 2D DXF drawings, and all necessary documentation for prototyping and mass production. I can also assist with design refinement, tolerance analysis, assembly fit checks, fastener selection, and mechanical integration with your PCB or electronics.
I primarily work with PTC Creo (Pro-E), SolidWorks, and AutoCAD, delivering precise and production-ready mechanical designs tailored to your project requirements.
You will receive high-quality 3D STEP files, IGES files, 2D DXF drawings, and all necessary documentation for prototyping and mass production. I can also assist with design refinement, tolerance analysis, assembly fit checks, fastener selection, and mechanical integration with your PCB or electronics.
I primarily work with PTC Creo (Pro-E), SolidWorks, and AutoCAD, delivering precise and production-ready mechanical designs tailored to your project requirements.
Materials
MetalField of Expertise
Consumer Electronics, IoT, WearablesDesign Software
AutoCAD, CATIA, Creo, Fusion 360, SolidWorksFile Format
DWG, OBJ, PDF, STEP, STLWhat's included
| Service Tiers |
Starter
$150
|
Standard
$200
|
Advanced
$300
|
|---|---|---|---|
| Delivery Time | 3 days | 5 days | 8 days |
Number of Revisions | 1 | 2 | 3 |
Number of 3D Renders | 5 | 5 | 5 |
3D Modeling | |||
Texturing & Lighting | - | - | - |
Animation | - | - | - |
Source Files |
