You will get Special PCB Design – ESP12F with 4 Relays
Project details

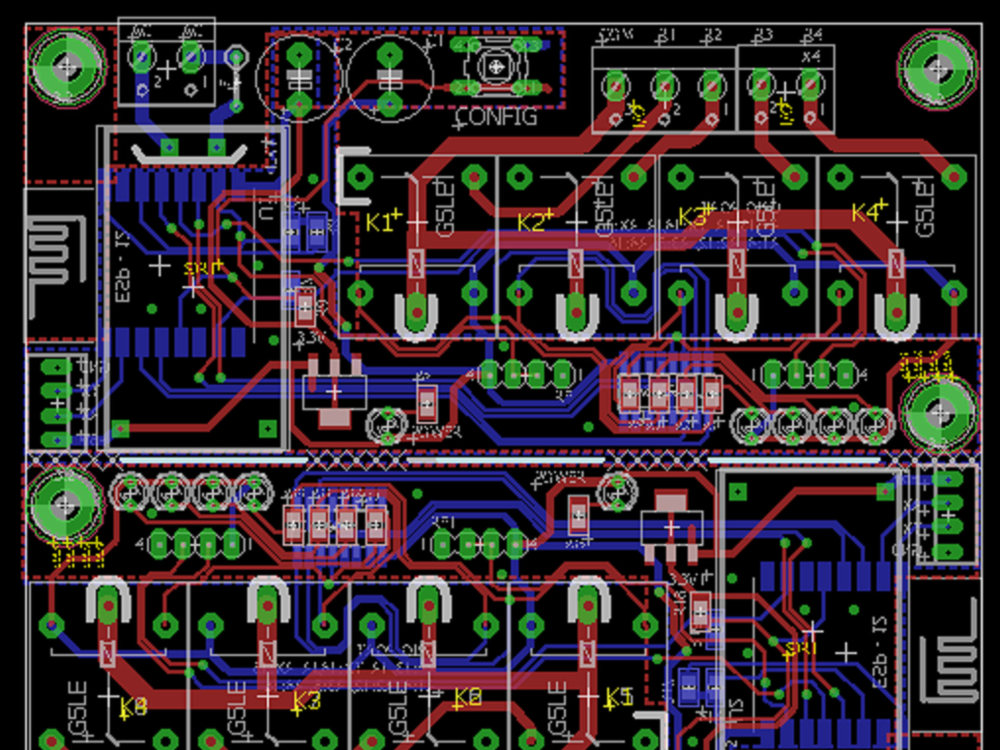

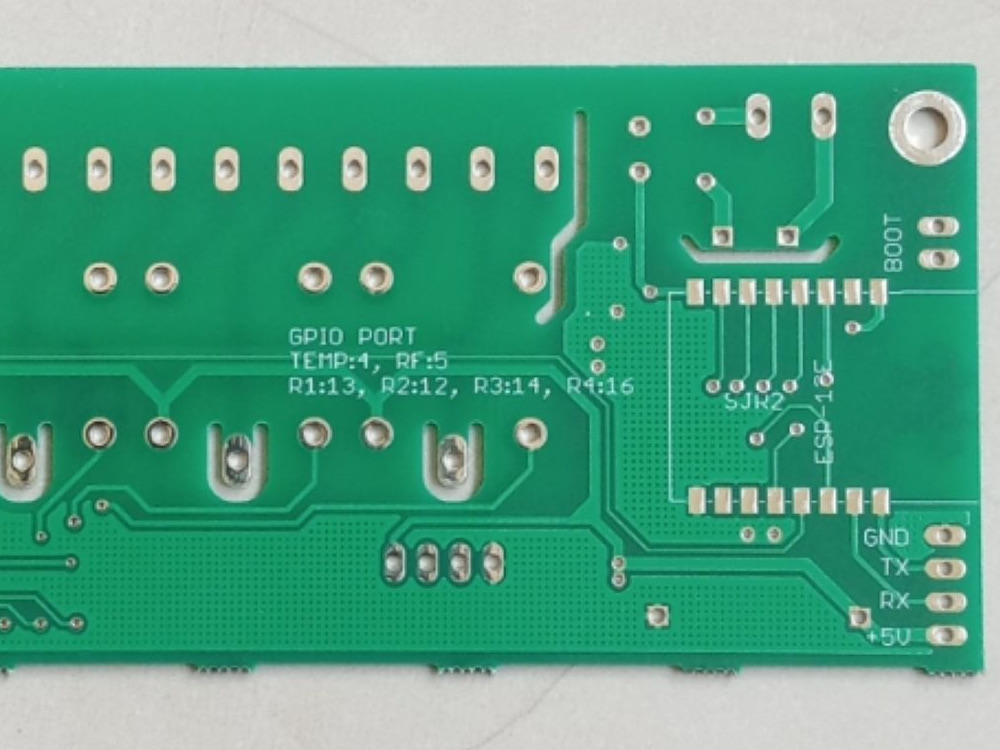

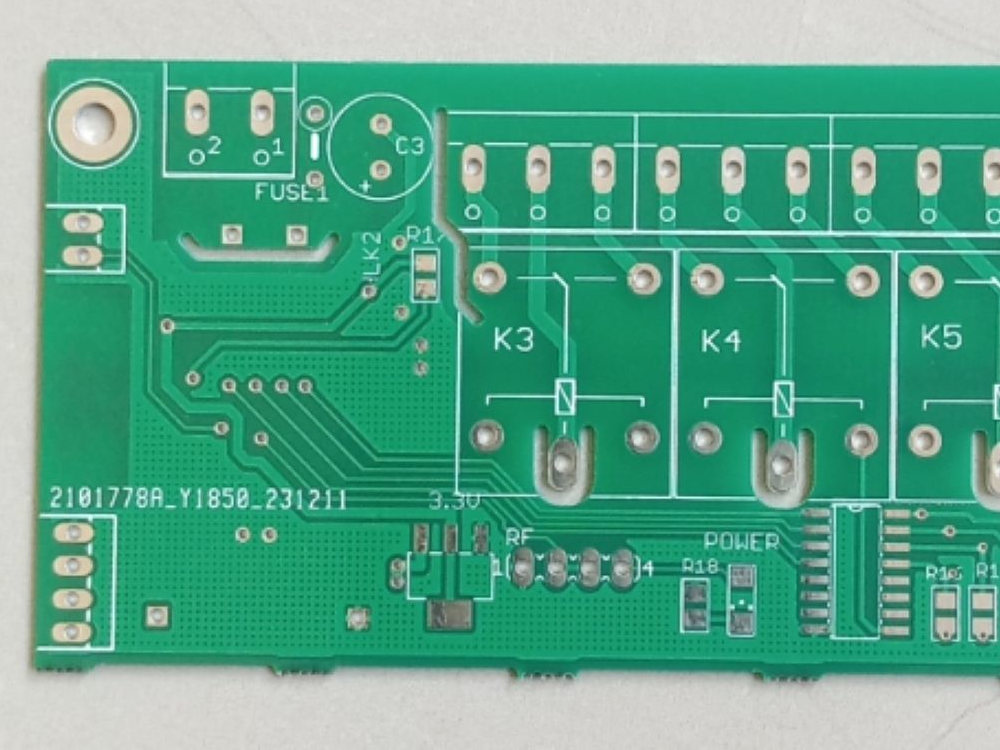

"I will design a compact and reliable PCB using Eagle CAD, tailored for ESP12F with 4 relays. Includes schematic, PCB layout, BOM, and Gerber files. Ideal for home automation or IoT relay control projects."
Product Type
OtherFile Format
PDF, PNG, OtherWhat's included
| Service Tiers |
Starter
$8
|
Standard
$20
|
Advanced
$50
|
|---|---|---|---|
| Delivery Time | 5 days | 7 days | 7 days |
Number of Revisions | 1 | 2 | 5 |
Full Product Wrap | - | - | - |
Print-Ready | - | - | - |
Source Files | - | - | - |
3D Image | - | - | - |
Commercial Use | - | - | - |
Dielines | - | - | - |
About Budi
PCB Designer & Industrial Automation Specialist | Eagle CAD & SCADA
Sidoarjo, Indonesia - 3:51 pm local time
I am an experienced PCB designer specializing in Autodesk Eagle for creating professional schematic and PCB layouts. I have worked on a wide range of projects — from simple prototypes to complex multi-layer PCBs — for both personal and industrial applications.
In addition to PCB design, I also specialize in Industrial Automation Systems, such as:
• PLC programming
• Modbus RTU/TCP integration
• Node-RED dashboard development
• Web-based SCADA systems
• Data logging and visualization (graphs, KPIs, alarms)
• Sensor integration (pulse meters, level switches, current sensors, etc.)
