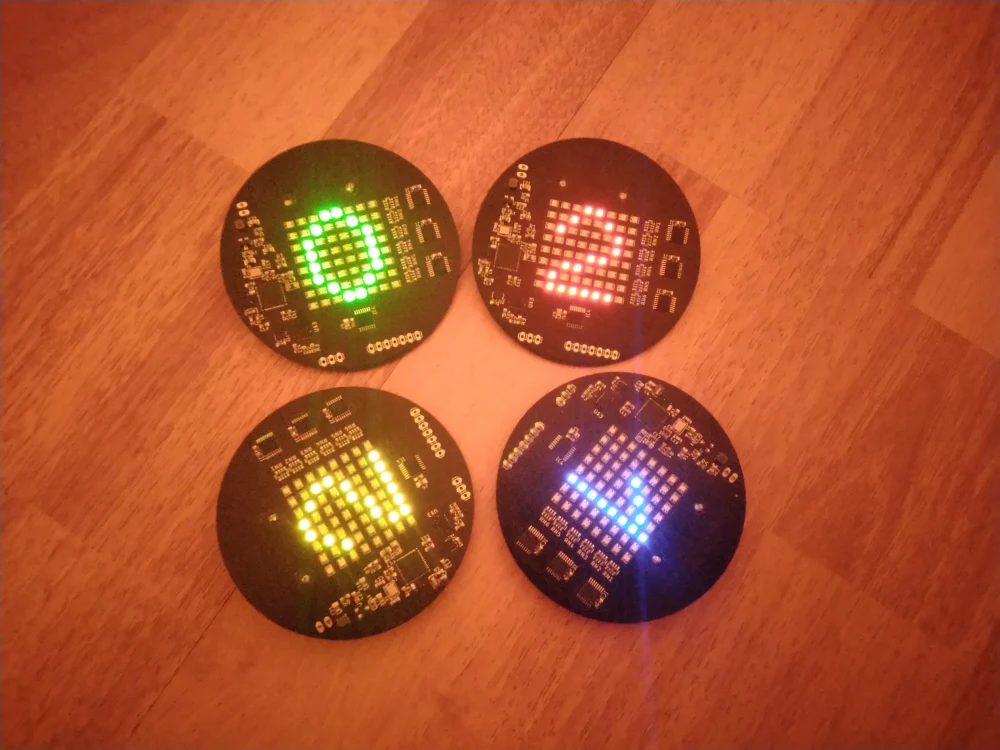

You will get a Bluetooth LED Matrix disc with an accelerometer
Project details

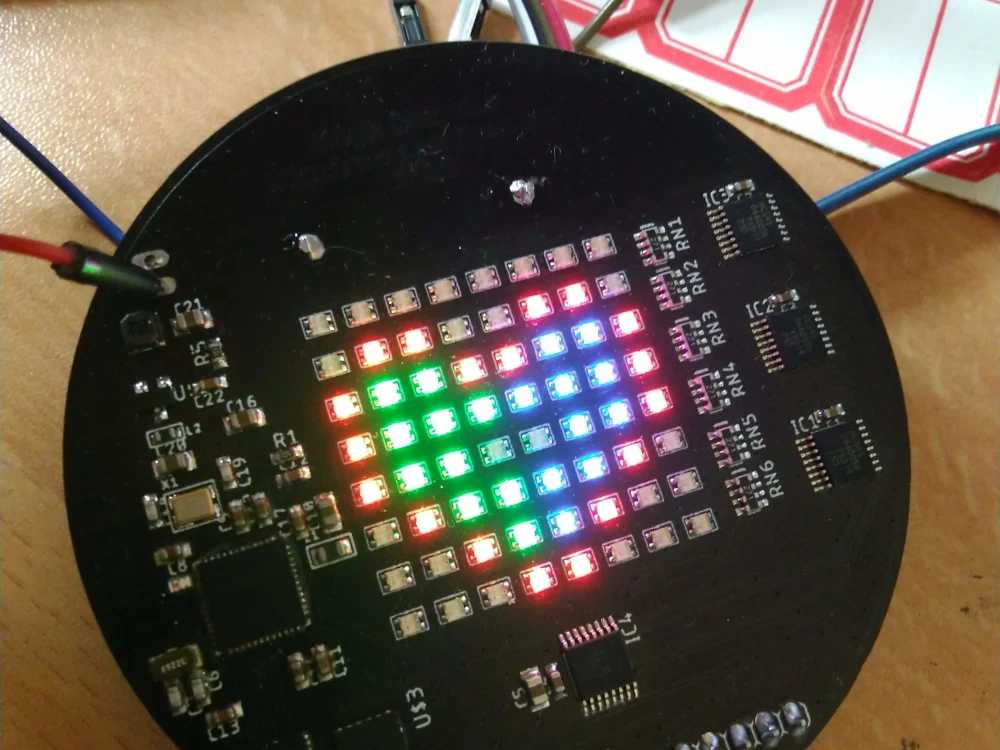

The project is a device for displaying RGB bitmaps 8x8 dots with control via bluetooth (BLE). The device has an accelerometer that allows it to react to movement and shock. The device has a flash memory chip for system recovery in case of unsuccessful flashing or bad firmware.
You will receive documentation including device schematic, PCB gerber file ready for production, firmware (with full source code) with the ability to update over the air (Over-the-Air firmware updater - OAD) and an Android app to update the device firmware. The device uses the TI CC2640R2F MCU.
You will receive documentation including device schematic, PCB gerber file ready for production, firmware (with full source code) with the ability to update over the air (Over-the-Air firmware updater - OAD) and an Android app to update the device firmware. The device uses the TI CC2640R2F MCU.
What's included $200
These options are included with the project scope.
$200
- Delivery Time 7 days
- Number of Revisions 1
- Remote Connection Support
- Documentation
Frequently asked questions
About Alexander
Software/Hardware Developer
Yerevan, Armenia - 7:08 pm local time
mobile and embedded development. I have worked for MacCenter
and Archos (Russian office). I have worked for cloud solution for
remote terminals in MiPC S/A, and afterwards continue to work in
Nomachine. While living in Armenia an idea came to my mind to
create native Armenian keyboards as there weren't any. I designed
the documentation and started cooperate with Chinese manufactory
to produce Armenian keyboards. Until now they are sold in local
computer stores.
I am expert in:
Cross platform software development
Linux software development
Linux kernel development
Android development
Bare metal programming
Embedded firmware development
Full-stack developer for desktop/mobile applications
Cooperation with Chinese hardware manufactures for prototyping
and producing.
In spare time i work for my hobby projects. My big projects are
pdaXrom (embedded linux distro), pyldin 601 (clone for old 8 bit
computer, software emulator and in real hardware), my personal
clouds VPN (which is currently used by many people in China),
MagicDisc BLE (funny bluetooth led disk with accelerometer),
minifpga board and ram expansion.
Steps for completing your project
After purchasing the project, send requirements so Alexander can start the project.
Delivery time starts when Alexander receives requirements from you.
Alexander works on your project following the steps below.
Revisions may occur after the delivery date.
Gather requirements
The client wishes for device customization (battery type, bootloader service pictures, bluetooth/ble id name).
Customization
Adaptation of the project to the wishes of the client.
