You will get FPGA Design - Run-Time Configurable CNN Computation Modules
Project details

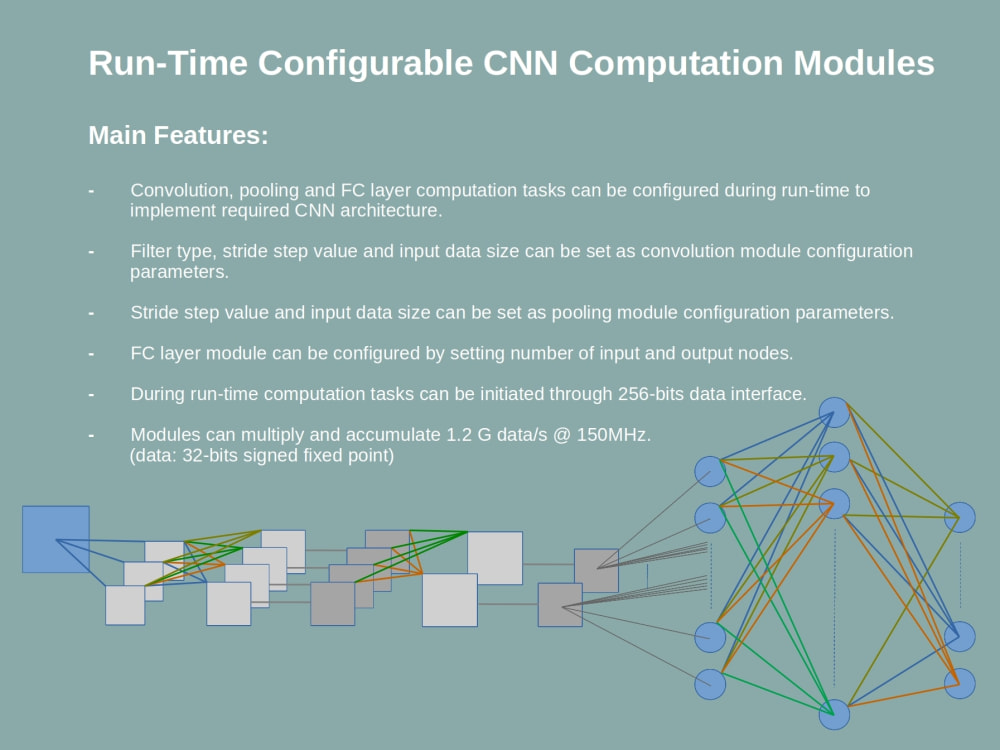

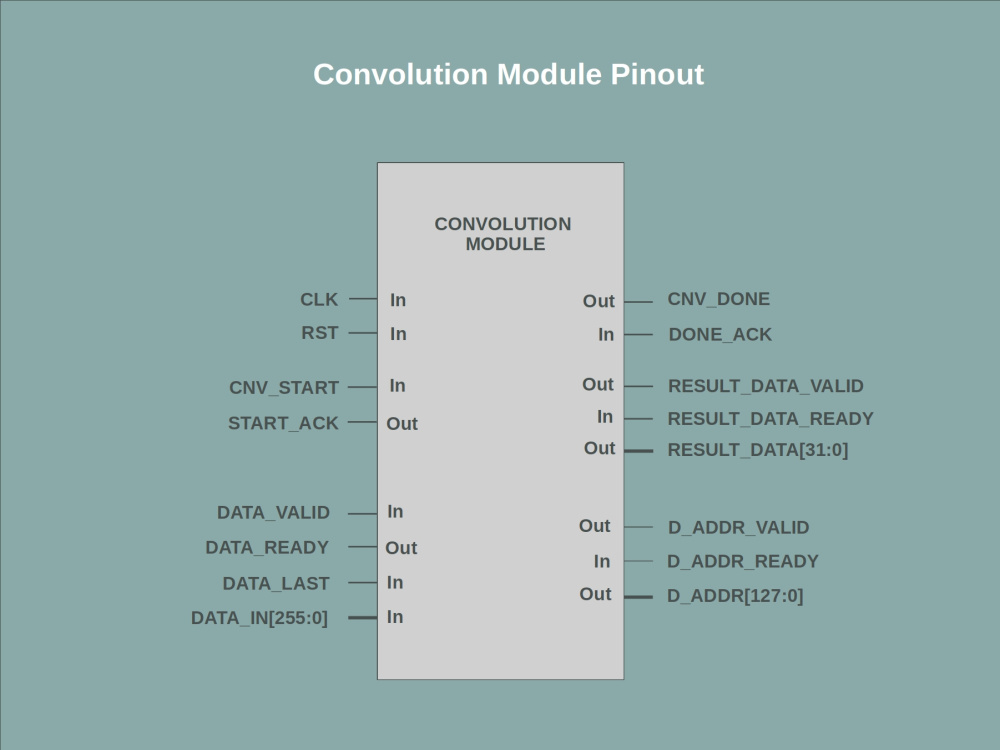

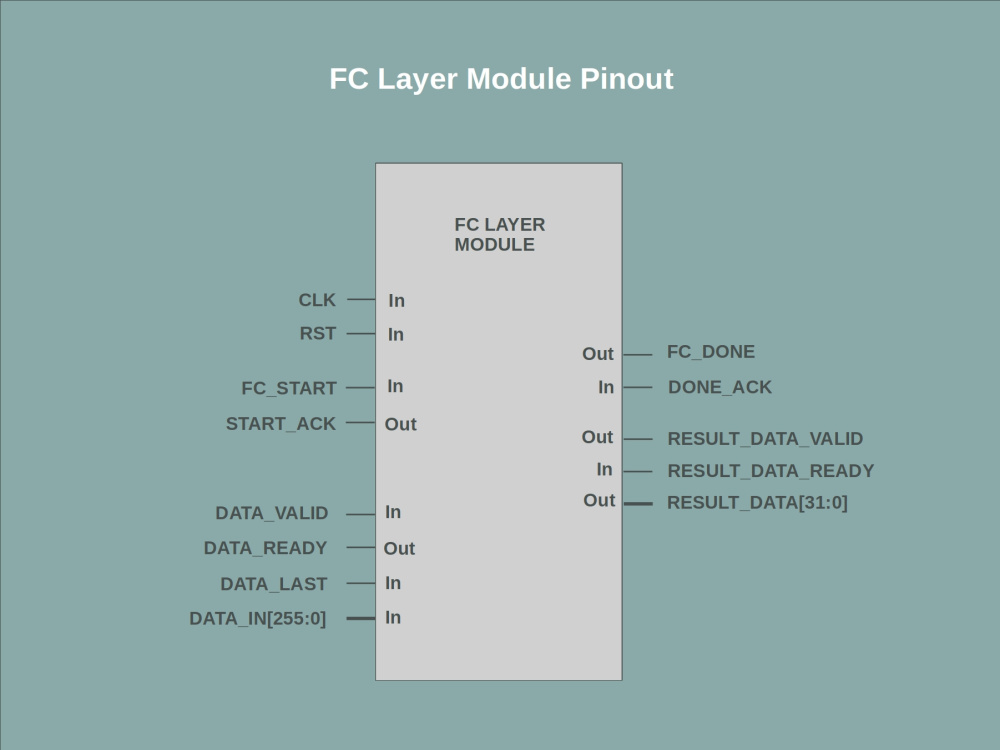

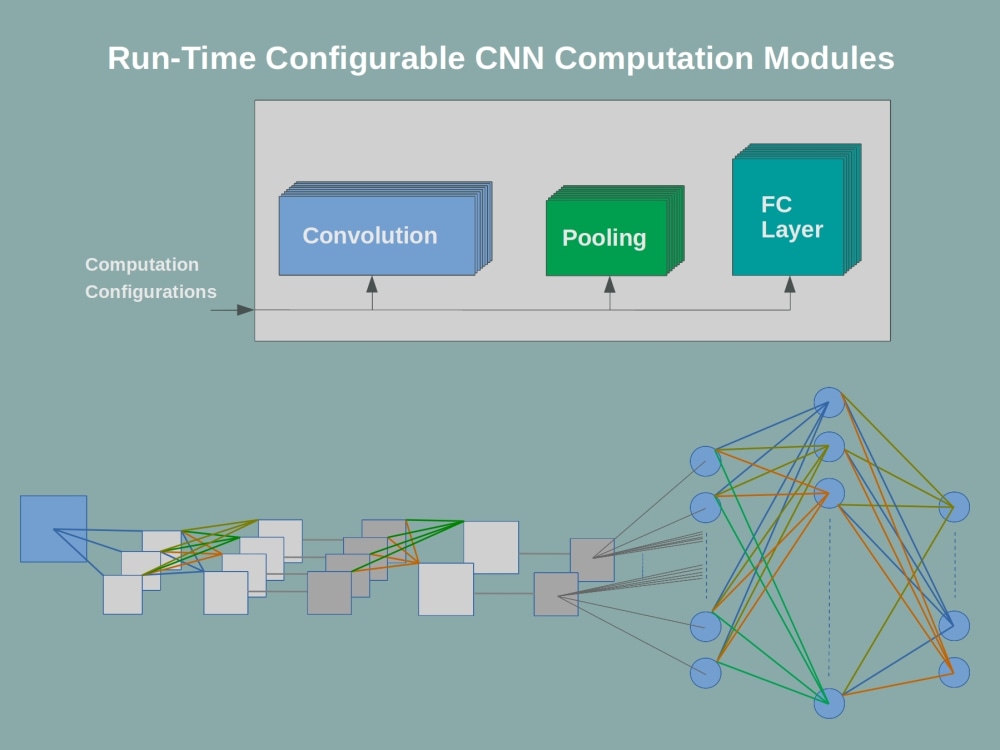

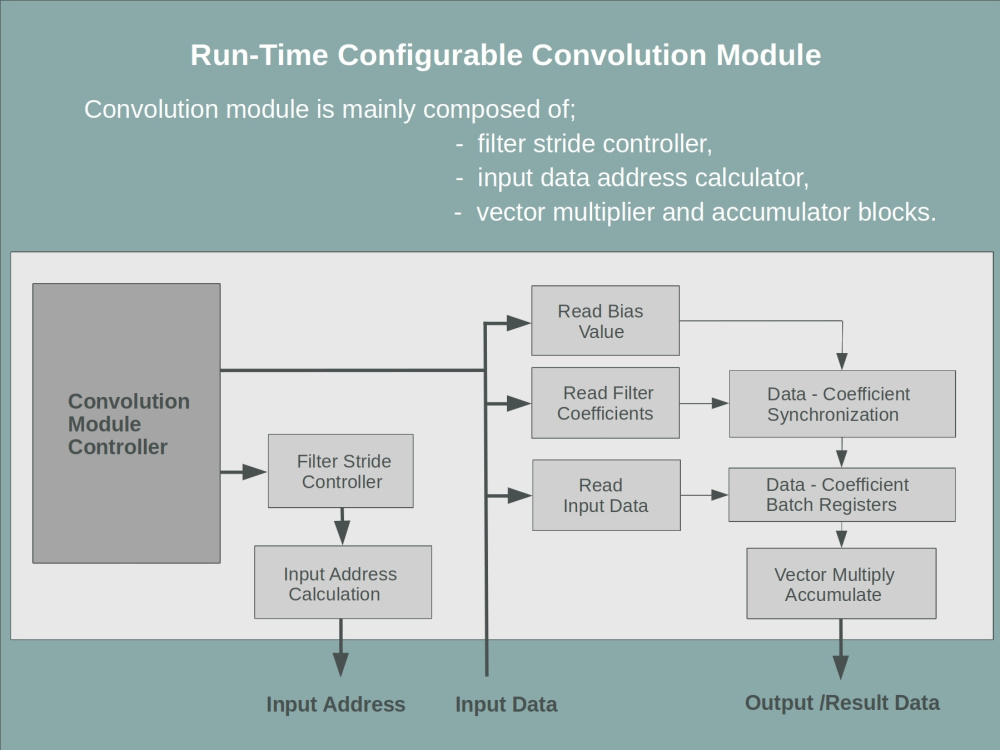

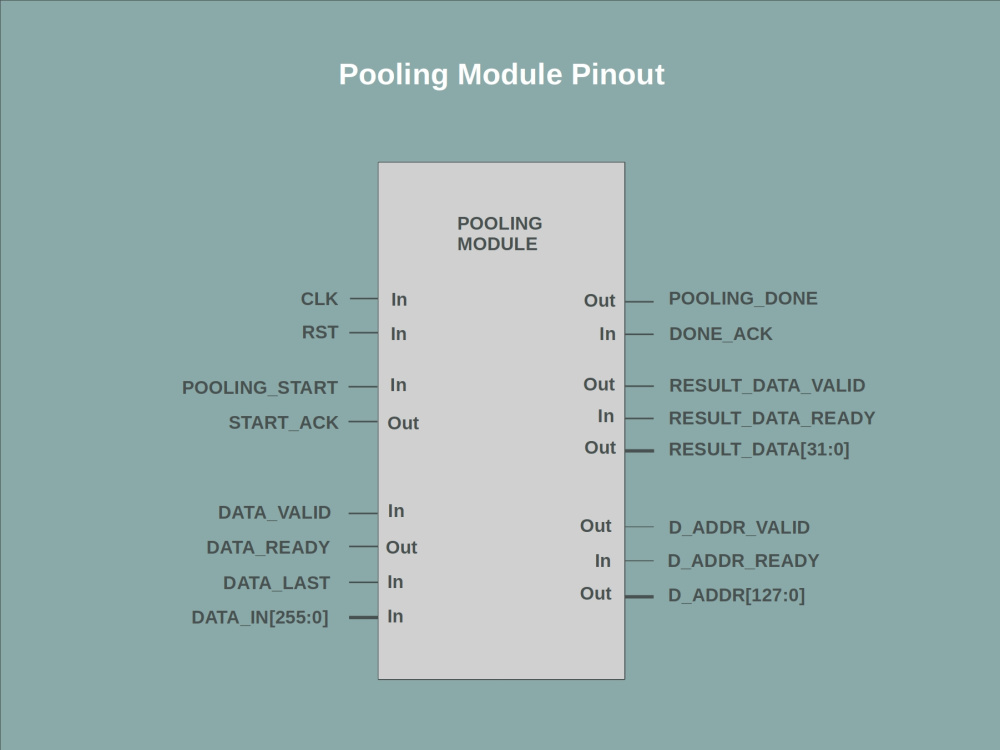

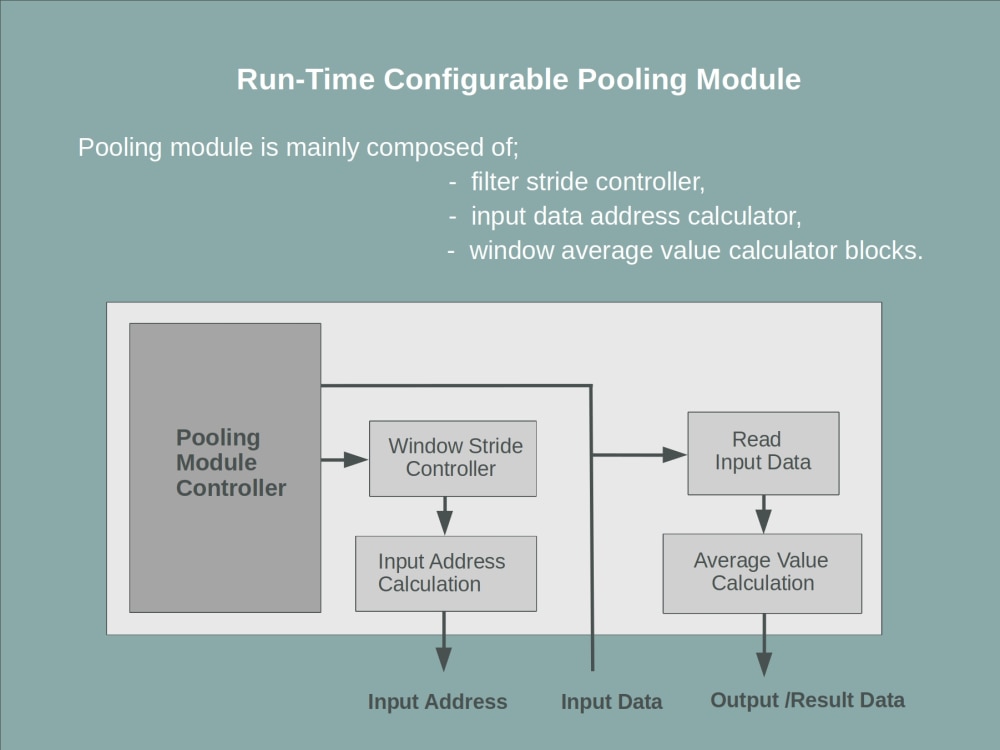

Run-time configurable CNN computation modules provide an alternative solution to implement custom CNN architectures in FPGAs. They can easily be connected to a controller module through 256-bits data interfaces and valid/ready handshake protocol. These modules can be utilized as convolution, pooling and FC layer processors in CNN implementations.

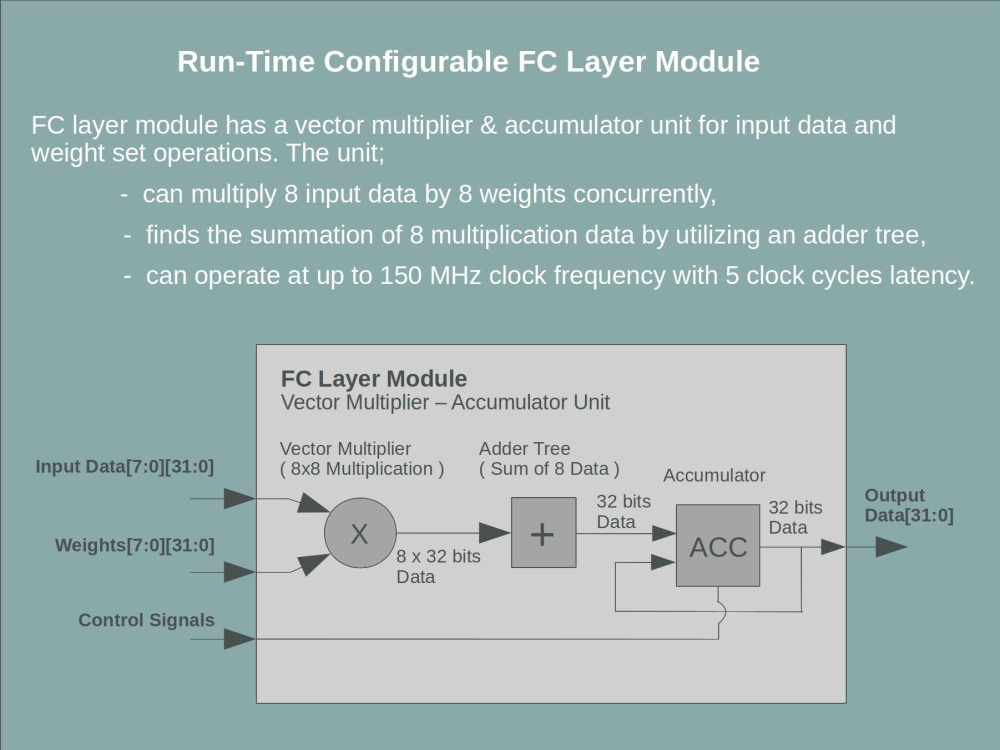

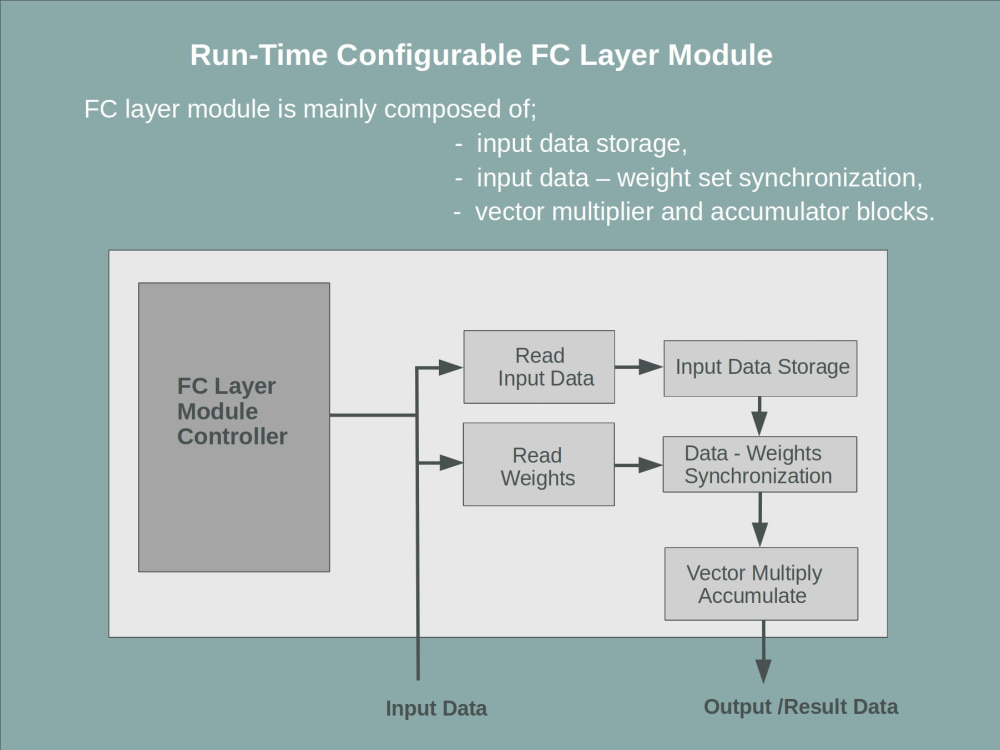

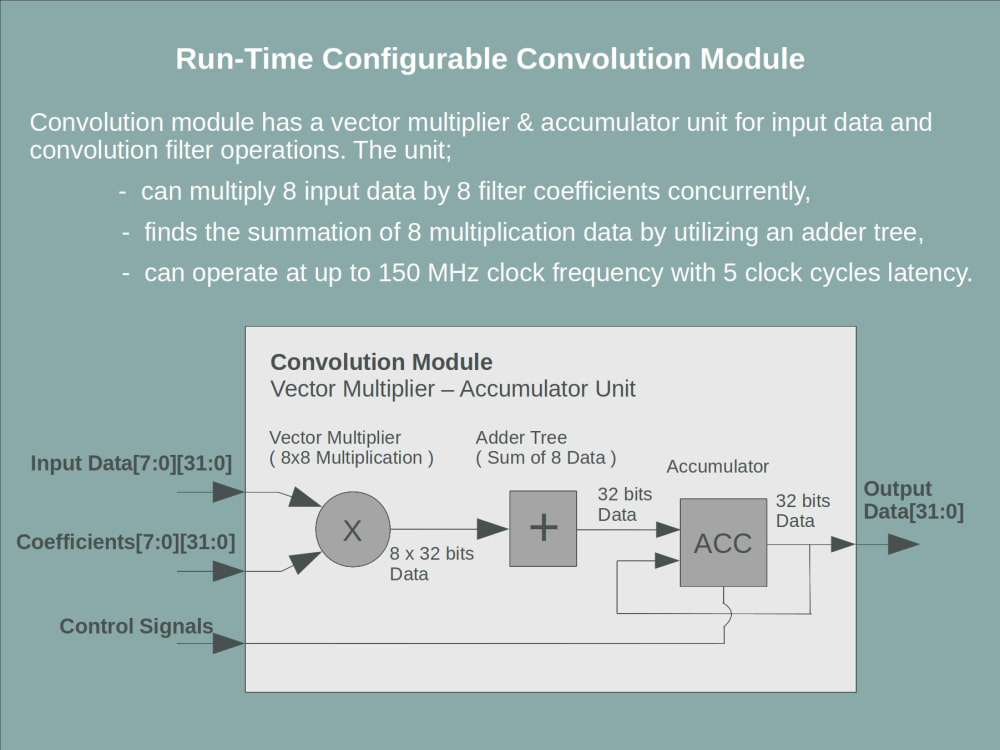

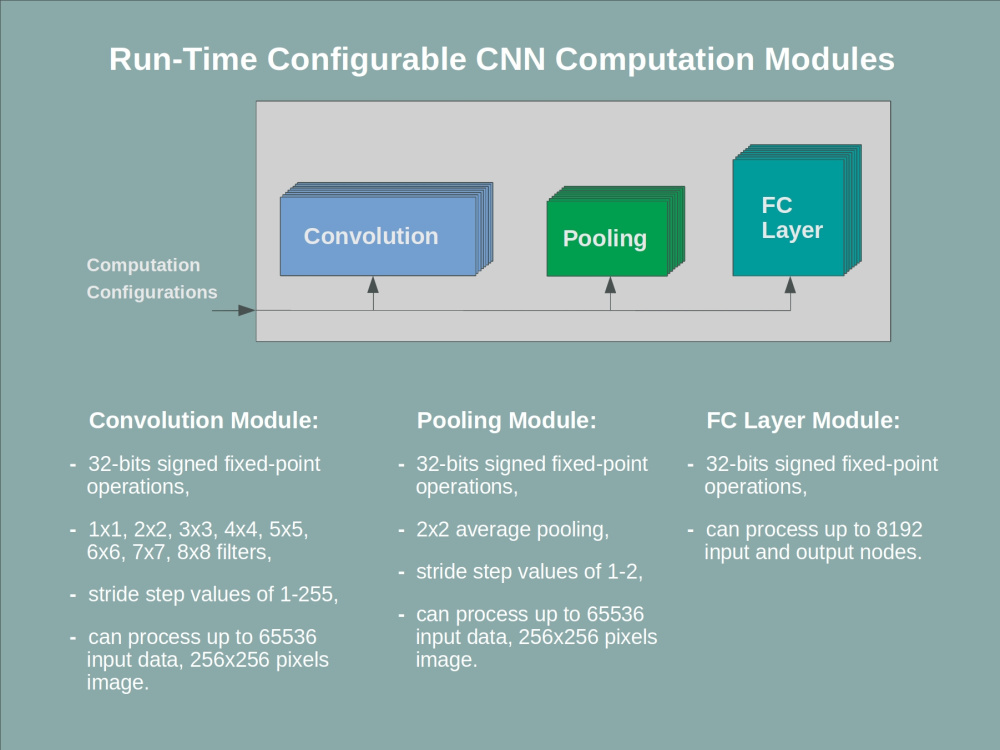

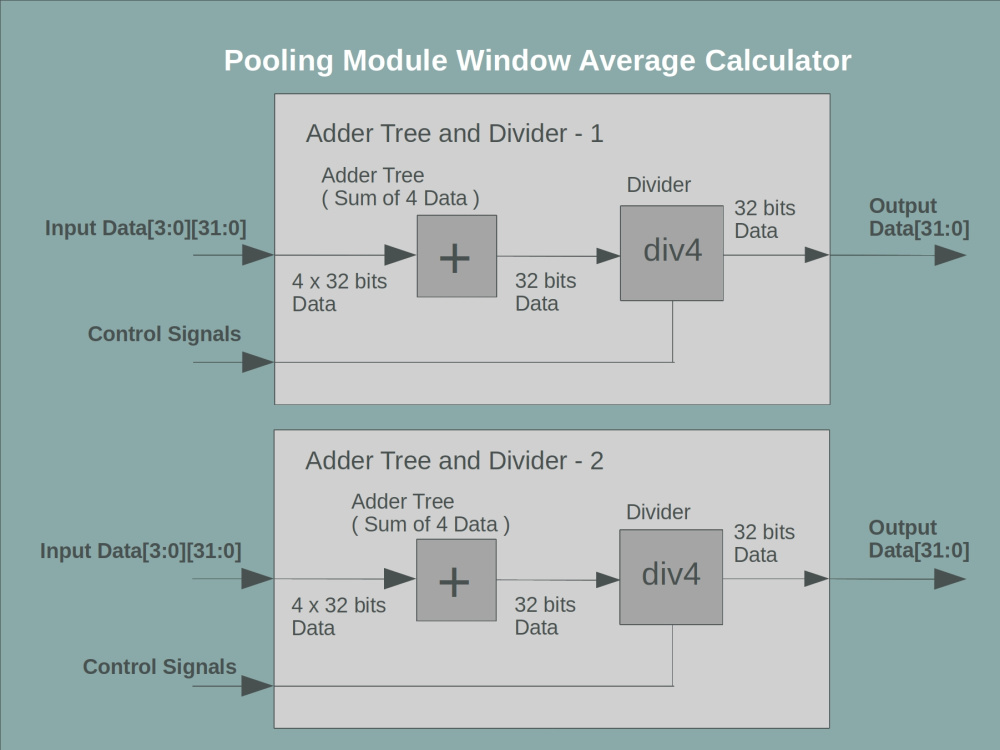

To process required CNN task, convolution filter type, stride step values, input data size and input/output node numbers can be set during run-time for convolution, pooling and FC layer modules. Modules utilize concurrent computation engines that can process up to 1.2 G data/s at 150MHz clock frequency. (data: signed 32-bits fixed point).
For clients who are interested in CNN implementations in FPGAs, these modules will be easy-to-integrate solution.
To process required CNN task, convolution filter type, stride step values, input data size and input/output node numbers can be set during run-time for convolution, pooling and FC layer modules. Modules utilize concurrent computation engines that can process up to 1.2 G data/s at 150MHz clock frequency. (data: signed 32-bits fixed point).
For clients who are interested in CNN implementations in FPGAs, these modules will be easy-to-integrate solution.
AI Development Type
Deep LearningWhat's included
| Service Tiers |
Starter
$1,500
|
Standard
$3,000
|
Advanced
$4,500
|
|---|---|---|---|
| Delivery Time | 30 days | 37 days | 42 days |
Number of Revisions | 1 | 2 | 2 |
AI Model Integration | - | - | - |
Detailed Code Comments | |||
Knowledge Graph | - | - | - |
Model Documentation | |||
Ontology | - | - | - |
Source Code | |||
Taxonomy | - | - | - |
